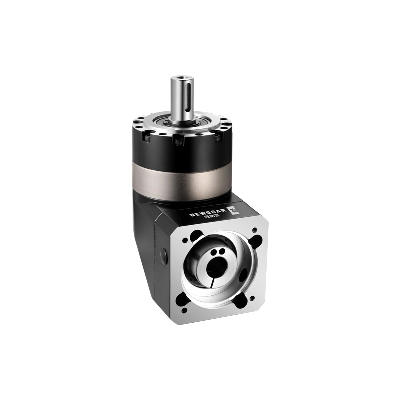

High Torque Standard Backlash Right Angle Planetary Reducer Gearbox

High Torque Standard Backlash Right Angle Planetary Reducer GearboxThis Spur planetary gearbox is used for servo motor and related device which need to reduce speed or enlarge torque! Newgear Spur planetary gearboxes external diameter from 60 to 160, gear ratio from 3 to 100! It has high precision and are widely used with servo motor such like Panasonnic,Fuji, Mitsubishi, Omran,Delta, Teco.Product DescriptionDescription:(1).The output shaft is made of large size,large span double bearing design,output shaft and planetary arm bracket as a whole.The input shaft is placed directly on the planet arm bracket to ensure that the reducer has high operating accuracy and maximum torsional rigidity.(2).Shell and the inner ring gear used integrated design,quenching and tempering after the processing of the teeth so that it can achieve high torque,high precision,high wear resistance.Moreover surface nickel-plated anti-rust treatment,so that its corrosion resistance greatly enhanced.(3).The planetary gear transmission employs full needle roller without retainer to increase the contact surface,which greatly upgrades structural rigidity and service life.(4).The gear is made of Japanese imported material.After the metal cutting process,the vacuum carburizing heat treatment to 58-62HRC. And then by the hobbing,Get the best tooth shape,tooth direction,to ensure that the gear of high precision and good impact toughness.(5).Input shaft and sun gear integrated structure,in order to improve the operation accuracy of the reducer.Product Parameters1.With bevel gear reversing mechanism,right angle steering output is realized.2.Round flange output.threaded connection,standardized size.3.The input connection specifications are complete and there are man choices.4.Straight tooth transmission,single cantilever structure, simple design and high cost performance.5.Keyway can be opened in the force shaft.6.Return backlash 8-16 arcmin.SpecificationsPVLN60PVLN90PVLN120Technal ParametersMax. TorqueNm1.5times rated torqueEmergency Stop TorqueNm2.5times rated torqueMax. Radial LoadN2404501240Max. Axial LoadN2204301000Torsional RigidityNm/arcmin1.84.8511Max.Input Speedrpm800060006000Rated Input Speedrpm400035003500NoisedB≤58≤60≤65Average Life Timeh20000Efficiency Of Full Load%L1≥95%       L2≥92%Return BacklashP1L1arcmin≤8≤8≤8L2arcmin≤12≤12≤12P2L1arcmin≤16≤16≤16L2arcmin≤20≤20≤20Moment Of Inertia TableL13Kg*cm20.461.7312.784Kg*cm20.461.7312.785Kg*cm20.461.7312.787Kg*cm20.411.4211.3810Kg*cm20.411.4211.38L212Kg*cm20.441.4912.1815Kg*cm20.441.4912.1816Kg*cm20.721.4912.1820Kg*cm20.441.4912.1825Kg*cm20.441.4912.1828Kg*cm20.441.4912.1830Kg*cm20.441.4912.1835Kg*cm20.441.4912.1840Kg*cm20.441.4912.1850Kg*cm20.341.2511.4870Kg*cm20.341.2511.48100Kg*cm20.341.2511.48Technical ParameterLevelRatio PVLN60PVLN90PVLN120Rated TorqueL13Nm27961614Nm401222105Nm401222107Nm349517010Nm165686L212Nm279616115Nm279616116Nm4012221020Nm4012221025Nm4012221028Nm4012221030Nm279616135Nm4012221040Nm4012221050Nm4012221070Nm3495170100Nm165686Degree Of Protection IP65Operation TempratureºC - 10ºC to -90ºCWeightL1kg1.74.412L2kg1.9514Company Profile Packaging & Shipping1.Lead time: 10-15 days as usual, 30 days in busy season, it will be based on the detailed order quantity;2.Delivery: DHL/ UPS/ TNT/ UPS/ FEDEXFAQ1. who are we?Hefa Group is based in Guangdong, China, start from 1998,has a three subsidiaries in total.The Main Products is planetary gearbox,timing belt pulley, helical gear,spur gear,gear rack,gear ring,chain wheel,hollow rotating platform,module,etc2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.how to choose the suitable planetary gearbox?First of all,we need you to be able to provide relevant parameters.If you have a motor drawing,it will let us recommend a suitable gearbox for you faster.If not,we hope you can provide the following motor parameters:output speed,output torque,voltage,current,ip,noise,operating conditions,motor size and power,etc4. why should you buy from us not from other suppliers?We are a 22 years experiences manufacturer on making the gears, specializing in manufacturing all kinds of spur/bevel/helical gear, grinding gear, gear shaft, timing pulley, rack, planetary gear reducer, timing belt and such transmission gear parts5. what services can we provide?Accepted Delivery Terms: Fedex,DHL,UPS;Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;Accepted Payment Type: T/T,L/C,PayPal,Western Union;Language Spoken:English,Chinese,Japanese/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
