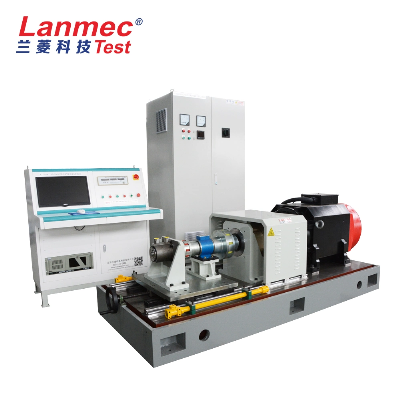

Gearbox Test Bench Hydraulic Motor Test Bench Worm Gearbox

Product DescriptionZJ-A type large torque speed sensor is capable of measuring various Super torque. The detection is mainly used in large motor, engine, internal combustion engines and other rotating power equipment output torque and power; detection of fan and water pump, gear box, torque wrench, torque and power; detection of railway locomotive, automobile, tractor, aircraft, shipbuilding, mining machinery in torque and power.  ModelRange N•mMaximum speedrpmAccuracyZJ-500K A500K800±0.2% F.SZJ-750K A750K710±0.2% F.SZJ-1000K A1000K710±0.2% F.SZJ-1200K A1200K560±0.2% F.SZJ-1500K A1500K560±0.2% F.SZJ-2000K A2000K480±0.2% F.S  ZJ torque speed sensor (dynamic) adopts strain gauge measurement technique.The electrical signal of elastic shaft under torsion can be measured by providing power for the strain gauge bridge. After amplified,and voltage/frequency conversion, the strain signal is converted into the frequency signal directly proportional to torsional strain.Product features:1. Torque measurement;energy and signal non-contact transmission; output signal digitized .2. High testing precision, high stability and anti-inter ference ability. 3.Repeating zero setting is not required continuous 4. Both static torque and dynamic torque can be measured. 5.an be used independently without secondary instrument, output signal can directly use by PLC or PC . 6.Can be customized according to customer requirements.Main Function and Performance Index:Torque indication error: 500MΩStatic overload: 150 %    Breaking load: 200 %  Power supply voltage:DC±15V±5% ,DC 24V( optional)Speed output signal: 60-2000 pulse / turn(optional)Zero torque frequency output:10KHZ       Positive torque full scale frequency output :15KHZ    Reverse torque full scale frequency output :5KHZ      Signal duty ratio: (50±10)%  Power consumption of the sensor: 4WTemperature when use: -20 ~ 70ºC Relative humidity: ≤90%RH Related ProductsMain application: DWZ disc eddy current brake is mainly used as load in loading dynamometer equipment. it is experimental apparatus which can measure the dynamic mechanical properties, especially in dynamic loading test whose power value is small or tiny, also can be treated as suction power devices of other dynamic devices. DW series disc eddy current dynamometer is, is that add device for measuring torque and rotational speed on DWZ series disc eddy current brake, it is experimental apparatus which can measure the dynamic mechnical properties, especial in dynamic loading test whose power value is small or tiny.CW eddy current brake as a load is mainly used to measure the mechanical characteristics of inspection equipment, it and other control instrument (including loading apparatus, torque speed sensor and torque power acquisition instrument etc.) can be composed of eddy current dynamometer can be used for performance testing of the internal combustion engine, motor, gas turbine, automobile and its dynamic mechanical components, compared with other power measuring device, the CW series power measuring device has the advantages of reliability, high stability and practicability.Company Information:Product Line:Advantages: CONTACT US:   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
