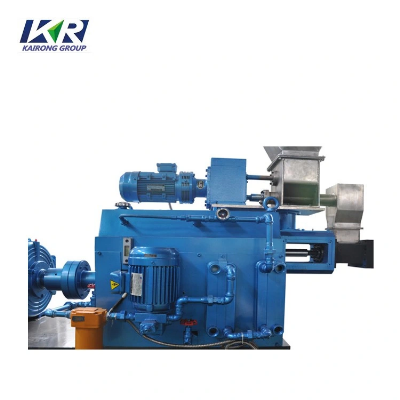

PVC Machines Gearbox for Twin Screw Extruder

Parallel twin screw extruder gearboxProduct Description:Gear box for double screw plastic extruder1.Modern and compact design2.NSK Bearings3.High torqueFeatures:1)reduction ratio:3:12)output shaft rotating speed:MAX 600RPM3)input shaft rotating speed:MAX 1500RPM4)combining host transmission box speed reduction and torque distribution part together, usingThree axis style design, with compact structure.Speed reduction, torque distribution and two Output shaft radial bearing all use NSK bearings.5)input/output shaft oil seal use original Japan brand products.6) Gear is 6 grade which is a high precision.High speed overloading hard-tooth surface.The materials are 20CrNi2MoA or 20CrMnMo, HRC 60/62.7) The bearing and geared are forced to adopted the immersion oil-lubrication system.8) Framework oil seal use Taiwan brand.Our machine types:1.CoRotating Parallel Twin Screw Pelletizing Extruders2.Single Screw Pelletizing Extruders3.Die Face Cut (Air Cooling) Pelletizing Extruders4.Double Stage / Double Degassing Recycling Extruders5.Crushers, Mixers, Storage Tanks, Vibrators, Granulators, BlowersModelDiameterL/DScrew rotaryMotor PowerTorqueCapacity TSE-40B41mm  32-52600r/min 30kw 239 90-150kg/h  TSE-52B 51.5mm 32-56 600r/min 55kw 438 225-300kg/  TSE-65B62.4mm 32-60 600r/min 90kw 716 200-300kg/h  TSE-75B 71mm  32-64  600r/min  132kw 1050  300-600kg/h  TSE-95B 93mm  32-64  600r/min  250kw 2387 800-1200kg/h Our Advantages:1.Kaironggroup is an integrated company with research and development,production,sales and service department.2.Six Years of experience in packaging machinery.3.With research and development team,we welcome OEM and orders.4.Strict QC process to make sure each product with good quality.5.Various equipment to meet your need.6.Unique business philosophy brings reliable quality and considerate service.Our Service:Before-saleIntroduce products in detailsRecommend suitbale solutionOffer testDuring  manufacturingProvide layout and engineering conditionsOffer screw plan and related documentsInform the project processing statusAfter-saleProvide installation,commissiong and trainingOffer spare partsProvide necessary technical support and update information  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
