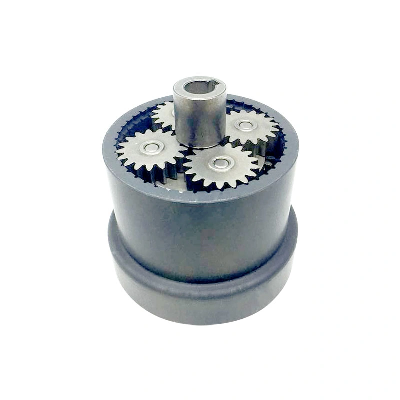

OEM Custom Powder Injection Molding Metal Sintered Planetary Gearbox

Our main products, geared motors ,steel gearboxes ,gear systems for motors .We specialize in designing and manufacturing highly engineered, custom gear motors ,gearbox parts ,and assemblies. Our professional staff are geared towards providing customers with high quality products and excellent service .In a simple planetary gearbox setup, input power turns the sun gear at high speed. The planets, spaced around the central axis of rotation, mesh with the sun as well as the fixed ring gear, so they are forced to orbit as they roll. All the planets are mounted to a single rotating member, called carrier. As the planet carrier turns, it delivers low-speed, high-torque output. The Sun Gear Gets The Input While The 3 Planet Gears Provide The Ouput Via A Planet Carrier .Gearbox ratio 3:1,5:1,10:1,20:1,30:1 , 50:1 , 100:1, etc.Our gearbox,Light weight,small size, high carrying capacity, long service life .Smooth operation, low noise, large output torque, large speed ratio, high efficiency, power diversion, and multi-tooth meshing by powder metallurgy process .   Customized metal parts specification  Product type Sintering planet metal gearbox with brushed motor5:1,10:1,20:1,30:1.50:1,80:1,100:1.Materialsteel ProcessPowder metallurgy , metal injection molding ,machineryTreatmentplating ,sand blasting , PVD , coatingTolerance±0.3%mmDrawing formatDWG ,IGS , STPDelivery time 10 days for mass production Powder metallurgy (PM) is a metal parts / components fabrication way and made from metal powders material . The process of powder metallurgy (PM) is blending fine powder materials , press them into a desired shape or form compacting , and heating the compressed material in a controlled atmosphere to bond the material sintering .PM process can avoid , or greatly reduce the need to use metal removal processes,thereby drastically reducing yield losses in manufacture and oftern resulting in lower costs . The powder metallurgy (PM) consist three steps : powder blending,compaction and sintering .Common products include gears , structural metal parts , bushings used for automobiles , appliances and powder equipments Advantages of powder metallurgy Products made by powder metallurgy (PM) generally do not need further finishing , because produces good surface finish.Maintains close dimensional tolerancesProvides materials which may be heat treated for increased strength or enhanced wear resistance .There is less wastage of raw material , can be very economical for mass production .Complex shapes parts can be made . Provides controlled porosity for self-lubrication or filtration.Suits to high volume parts productions requirements .Custom metal partsWorkshop  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
