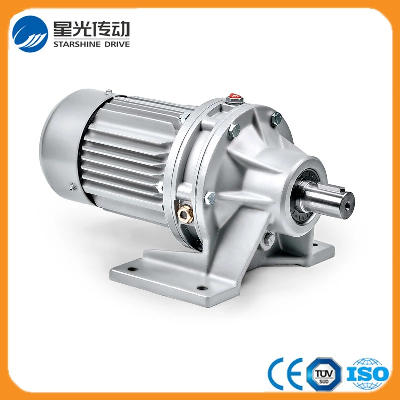

Cycloidal Speed Reducer Transmission Gearbox

Starshine Drive Cycloid Geared Motor Characteristics1. Features:1. Smooth running,low noise gear tooth needle more engagement.2. Cycloidal tooth profile provides a high contact ratio to withstand overload shocks3. Compact size: single ratio available from 1/9 to 1/87, double stage up from 1/99 to 1/7569 4. Ideal for dynamic applications: frequent start-stop-reversing duties suits for cyclo speed reducer since inertia is low5. Reduce maintenance costs: high reliability, long life, minimal maintenance compared to conventional gearboxes6. Internal parts replaceable with other brands to ensure running.7. Grease Lubricated & Oil Lubricated Models Available8. Output Shaft Rotation Direction: Single Reduction: Clockwise Rotation; Double Reduction→ Counter Clockwise Rotation9. Ambient Conditions: Indoor Installation:10-40 Celsius, Max 85% Humidity, Under 1000m Altitude, Well Ventilated Environment, Free of corrosive,        explosive gases, vapors and dust10.Slow Speed Shaft Direction: Horizontal, Vertical Up & Down, Universal Direction11.Mounting Style: Foot Mount, Flange Mount & Vertical F-flange Mount,12. Input Connection: Cyclo Integral Motor, Hollow Input Shaft Adapter13. Coupling Method With Driven Machine: Coupling, Gears, Chain Sprocket Or Belt14. Cycloid reducer Capacity Range: 0.37kW ~ 11kW;2. Technical parametersTypeOld TypeOutput TorqueOutput Shaft Dia.SXJ00JXJ0098N.mφ30SXJ01JXJ01221N.mφ35SXJ02JXJ02448N.mφ45SXJ03JXJ03986N.mφ55SXJ04JXJ041504N.mφ70SXJ05JXJ053051N.mφ90SXJ06JXJ065608N.mφ100About UsGuangdong Starshine Drive Co.,Ltd,the predecessor was a state-owned mould enterprise, was established in 1965. Starshine specializes in the complete power transmission solution for high-end equipment manufacturing industries based on the aim of "Platform Product, Application Design and Professional Service". Starshine have a strong technical force with over 350 employees at present, including over 30 engineering technicians, 30 quality inspectors, covering an area of 80000 square meters and kinds of advanced processing machines and testing equipments. We have a good foundation for the industry application development and service of high-end speed reducers & variators owning to the provincial engineering technology research center,the lab of gear speed reducers, and the base of modern R&D. Our TeamQuality ControlQuality:Insist on Improvement,Strive for Excellence With the development of equipment manufacturing indurstry,customer never satirsfy with the current quality of our products,on the contrary,wcreate the value of quality. Quality policy:to enhance the overall level in the field of power transmission   Quality View:Continuous Improvement , pursuit of excellence Quality Philosophy:Quality creates value 3. Incoming Quality Control To establish the AQL acceptable level of incoming material control, to provide the material for the whole inspection, sampling, immunity. On the acceptance of qualified products to warehousing, substandard goods to take return, check, rework, rework inspection; responsible for tracking bad, to monitor the supplier to take corrective  measures to prevent recurrence. 4. Process Quality Control The manufacturing site of the first examination, inspection and final inspection, sampling according to the requirements of some projects, judging the quality change trend;  found abnormal phenomenon of manufacturing, and supervise the production department to improve, eliminate the abnormal phenomenon or state. 5. FQC(Final QC) After the manufacturing department will complete the product, stand in the customer's position on the finished product quality verification, in order to ensure the quality of  customer expectations and needs. 6. OQC(Outgoing QC) After the product sample inspection to determine the qualified, allowing storage, but when the finished product from the warehouse before the formal delivery of the goods, there is a check, this is called the shipment inspection.Check content:In the warehouse storage and transfer status to confirm, while confirming the delivery of the  product is a product inspection to determine the qualified products. 7. Certification. PackingDelivery  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
