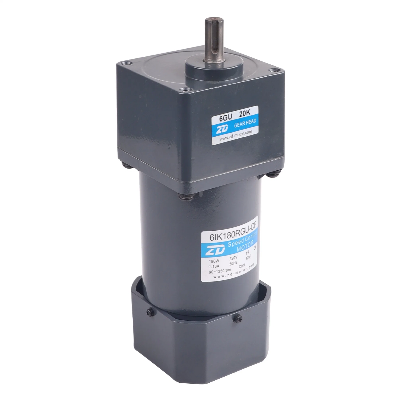

104mm 140W AC Motor Gear

104MM 140W AC Motor Gear  Detailed Photos Product ParametersFeatures:1) Dimensions: 104mm 2) Power: 120, 140W 3) Voltage: 110V, 220V 4) Speed: 50Hz: 90~ 1350rpm, 60Hz: 90~1650rpm 5) Reduction ratio: 3~ 200K Usage:Our motors can be widely used in medical appliance, packing mechanism, printing mechanism, cup making machine, textile machinery, and so on. SPECIFICATION FOR AC MOTORS:  MOTOR FRAME SIZE60 mm / 70mm / 80mm / 90mm / 104mmMOTOR TYPEINDUCTION MOTOR / REVERSIBLE MOTOR / TORQUE MOTOR / SPEED CONTROL MOTORSERIESK seriesOUTPUT POWER3 W / 6W / 10W / 15W / 25W / 40W / 60W / 90W / 120 W / 140W / 180W / 200W (can be customized)OUTPUT SHAFT8mm / 10mm / 12mm / 15mm ; round shaft, D-cut shaft, key-way shaft (can be customized)Voltage typeSingle phase 100-120V 50/60Hz 4PSingle phase 200-240V 50/60Hz 4PThree phase 200-240V 50/60HzThree phase 380-415V 50/60Hz 4PThree phase 440-480V 60Hz 4PThree phase 200-240/380-415/440-480V 50/60/60Hz 4PAccessoriesTerminal box type / with Fan / thermal protector / electromagnetic brakeAbove 60 W, all assembled with fanGEARBOX FRAME SIZE60 mm / 70mm / 80mm / 90mm / 104mmGEAR RATIOMINIMUM 3:1---------------MAXIMUM 750:1GEARBOX TYPEPARALLEL SHAFT GEARBOX AND STRENGTH TYPERight angle hollow worm shaftRight angle spiral bevel hollow shaftL type hollow shaftRight angle solid worm shaftRight angle spiral bevel solid shaftL type solid shaftK2 series air tightness improved typeCertification CCC  CE  UL  RoHSCompany Profile FAQQ: What're your main products?A: We currently produce Brushed Dc Motors, Brushed Dc Gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors, Ac Motors and High Precision Planetary Gear Box etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too. Q: How to select a suitable motor?A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly. Q: Do you have a customized service for your standard motors?A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too. Q: Do you have an individual design service for motors?A: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost and design charge.  Q: What's your lead time?A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders. Please contact us if you have detailed requests, thank you !  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
