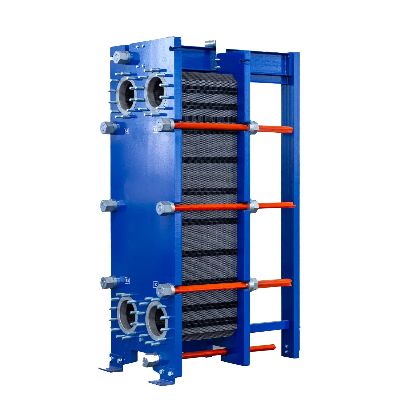

Small Angle Flow Channel Steam Heat Exchange Stainless Steel Plate Heat Exchanger

Product Description The plate heat exchanger consists of two parts: the external frame and the heat exchanger plate, of which the core component is the heat exchanger plate, which is usually pressed from a thin metal sheet with a regular corrugated shape. Through the process of stacking, rubber gasket pressing, bolt fixing, etc., a number of heat exchanger plates are arranged alternately at certain intervals, and then sealed with rubber around, all of which constitute a complete set of plate heat exchanger.During operation, thin rectangular fluid channels are formed between each heat exchanger plate, and the two heat transfer media, hot and cold, enter these narrow, tortuous flow channels through the holes in the corners of the plates, and the corrugations on the plates enhance the stiffness of the plates, as well as the turbulence of the fluid. The two media form a parallel or counter-flow between the plate barriers and pass through the intervening layers of plates for heat transfer.Detailed PhotosHigh heat exchangeThe heat exchange coefficient K value is in the range of 3000~8000w/m.°C, which is higher than other types of heat exchangers. Compact structureThe plate heat exchanger has a high heat transfer coefficient and is characterized by a compact structure and small size. 250 square meters of heat transfer area can be arranged in each cubic meter of volume.Flexible assemblyThe heat transfer area can be changed by increasing or decreasing the number of plates to accommodate changes in heat load. For pure fluids in the same heat exchanger, it is also possible to increase the flow rate between the plates by increasing the number of processes in order to achieve a high heat transfer coefficient. Product Parameters Plate MaterialMaterial gradeThickness(mm)Stainless steel304/316/316L0.5-0.8NickelNi0.5-0.8Acid-resistantTi0.5-0.8 Commercial pure titaniumRS-2/HC276/SM02540.5-0.8Gasket MaterialWorking TemperatureEPDM-20~150 ºCNBR-20~110 ºCChloroprene -40~100ºCFluoro    0~180ºCSilicon -40~200ºCCompany ProfileNanjing Beite Air Conditioning Equipment Co., Ltd. is a comprehensive high-tech enterprise that specializes in the research and development, production, sales, and after-sales service of HVAC water treatment equipment. Our company is equipped with two production plants, four standardized workshops, and two office buildings, with a total area of 48,000 square meters. Our main focus is to provide our customers with one-stop supply and service for their HVAC water treatment needs, and to help solve descaling, filtration, and system stability issues in water systems.At Nanjing Beite Air Conditioning Equipment, we are dedicated to providing our customers with high-quality equipment and excellent customer service. Our products are designed to improve the performance and efficiency of HVAC systems, as well as other types of water systems, and can help reduce maintenance costs associated with mineral buildup and system instability. Whether you are in need of HVAC water treatment equipment or equipment for another type of water system, Nanjing Beite Air Conditioning Equipment is your go-to source for top-notch products and service.FAQQ1: Can I have a sample ?A : Yes, welcome to place sample order to test and check quality. Mixed samples are also OK.Q2: What is your lead time for production?A : Generally Sample needs 1-3 days,mass production needs 15-30 days,also depands on your request.Q3 : Can you accept mixed batch of different products?A : Yes,we can provide different product mix wholesale.Q4: What payment terms do you accept?A :Trade assurance,TT,Western Union.Q5 : What is the warranty for your products?A :We provide one year warranty for the products..Q6 : Are you trading company or manufacturer? A :Yes,We are manufacturer.Welcome to visit our factory and check our pruducts.Q7: What terms of payment do you accept?A: Payment method:T/T,Paypal,western union.Q8: What is your delivery time?A: Delivery term:15-30 working days./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
