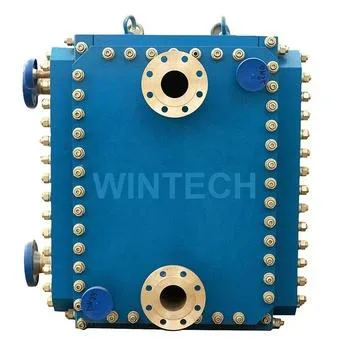

Welded High Pressure Titanium Plate Heat Exchanger for Sea Water Cooler

The plate-frame heat exchanger is composed of heat exchange core, column, blind plate, upper cover plate, lower cover plate, baffle plate, sealing gasket, support and so on. It has the characteristics of high heat transfer efficiency, small temperature difference of heat exchange, compact structure, small occupied area, convenient maintenance and cleaning, heat resistance, pressure resistance, safety and reliability, wide temperature range and strong adaptability. It can meet the requirements of petroleum, chemical industry, electric power, etc. Metallurgical, shipbuilding and other industries in the process of heating, cooling, condensation and waste heat recovery needs, widely used.   The advantages of this Welded Titanium Plate Heat Exchanger :  The heat exchange core is a fully welded Titanium plate, and the blind plate is connected with bolts, and the equipment can be quickly installed, disassembled and convenient to clean The design temperature can reach 350ºC,and design pressure can reach 3.2MPa high performance on sea water resistance  Skew symmetric channel, turbulent heat transfer efficiency is higher The short and wide channel combination, suitable for easy blocking condition Technical Parameters:   MediumGas to Gas, Liquid to Liquid, Gas to LiquidDesign Temperature:350ºCDesign pressure3.2 MPaPlate Material:Titanium plate    Application field :  It is suitable for Petroleum, chemical, electric power, metallurgy, shipbuilding, pharmaceutical and other industries which use sea water as cold flow medium.Customization: We can specially customize products if you tell us any special requests,  such as spare parts, cylindricaltank, material, output, pump. .. After-sales Service: 1. One-year free warranty and life-long maintenance service 2. Equipment o peration and maintenance vedio guide for the c ustomers 3 . Help to do worker training 4 . On-line support every day FAQ: 1. Q:Are you a factory or trading company? A:We are one of the largest heat exchanger manufactory in China 2.Q:Can we visit your factory before placing orders? A: Sure, warmly welcome to our factory! 3.Q:What ' s the in fo needed if I send one inquiry ? A : Pls tell us the working conditions, mediums,t emperature ,pressure,  equipment ' s m ateria l,size,quantity, and other special requests 4.Q:What is the MOQ? A:We accept loose quantity order,any trial orders or mixed order 5.Q:How does your factory do quality control? A:Quality is priority ,we make relevant strict testing before delivery Our factory has already obtained ISO9001 quality and ISO 14001 Environmental management system certificate /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
