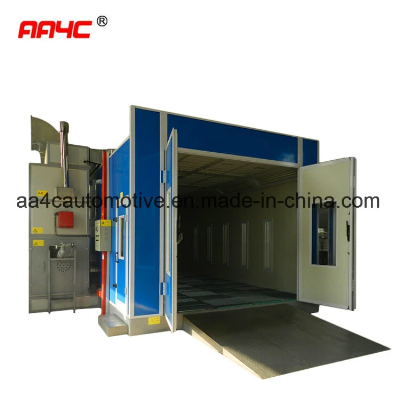

AA4c Panit Booth Spray Booth (AA-SB605)

AA4C Panit booth Spray Booth (AA-SB605) Outside Size(mm): 7040*5550*3450 Inside Size(mm): 6900*4000*2650 Front Door(mm): 3000(W)*2600(H) Service Door(mm) 650 * 1800 Total Power: 17.7kw Wallboard: EPS colorful steel skin board, wall panel: 70mm thick, ceiling panel: 50mm thick rock-wool panel, tongue & groove style compound construction, aluminum-alloy frame, anti-flame and heat- insulation Basement: Full grid, adjustable height, galvanized steel sheet construction, three embossed steel ramp Inlet Fan Model: YDW4.5L Outlet fan Model: YDW 5.6M Capacity: 24000m3/h Capacity: 21000m3/h Power: 4kw Power: 7.5kw Quantity: 2 sets Quantity: 1 set Air volume: 24000m3/h; Air speed: 0.4m/s, air recycling times: 315 times/h Purification System: Dual filtering structure, the primary filter can capture granules larger than 10 μ M. Ceiling filter can capture granules bigger than 4μ M. The whole purification system has capacity of large volume of dust. Its filtering rate reaches 98%. Air pressure balance gauge, TSP≤ 1.2mg/m3 Heating SystemItaly: Italy Riello RG3 diesel burner, 160000Kcal/h, 20N damper motor SUS304 stainless steel heating exchanger, argon arc welding max temp: 80 tempreature, heating time: 4-5min(20-60tempreature ), Fuel consumption: 4-5kg/vehicle Lighting System: Ceiling Light: 32pcs 36w Philips lamp; Bottom light: 16pcs 36w Philips lamp, 1000 Lux Controlling System: Spray & baking switch, light switch, emergency stop, breakdown alarm, failure alarm, timer Environmental System: Multi-layers fiberglass filter, active carbon   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
