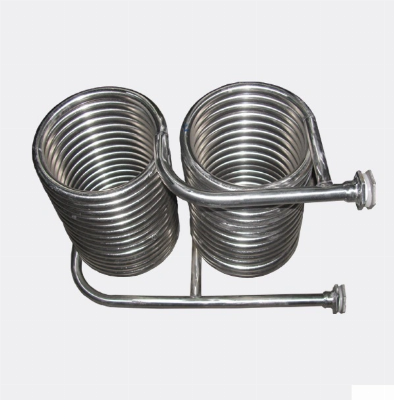

China Make Spiral Tube Heat Exchanger Manufacturer for Brewing

China Make Spiral Tube Heat Exchanger Manufacturer For Brewing   Detail parameters:ModelECO-CT-010CAECO-CT-015CAECO-CT-020CAHeat exchanger power10HP15HP20HPCooling capacity35kw52.5KW70KWHeating capacity50kw75KW100Media inlet diameter(mm)25 copper2525Media outlet diameter(mm)32 copper3238Tube materialStainless steel 304Stainless steel 304Stainless steel 304Tube diameter*thickness*length(mm)19*0.7*4000019*0.7*6000019*0.7*80000Diameter K(mm)300350400Dimension L(mm)250300350Diameter M(mm)200250300Diameter N(mm)150200250Weight (kg)18kg22kg28kgNote:The above parameters are based on our regular products. APT can design heat exchangers that fully meet customer needs according to the size of the water tank, heating power, refrigeration power, connection specifications of water chillers, etc. Why choose our Stainless steel tube heat exchanger?The inner heat converter is made of seamless stainless steel, which has strong corrosion resistance, high heat transfer efficiency, non-magnetic, non-toxic and good heat resistance.The outer barrel is made of stainless steeel , too.  solvent pressing and synthesis. It has good chemical stability and is not affected by environmental factors and medium composition in the pipeline. It has good corrosion resistance, low heat transfer efficiency, good insulation and heat preservation, and good energy saving effect. It is welded by professional process.  Application industries : 1. Heat pump water heater condenser2. Condenser/evaporator for aquarium or aquaculture water chiller3. Condenser for pool heat pump4. Condenser/evaporator for water(ground) source heat pump5. Cooler or regenerator for CO2 heat pump air6. Condenser/evaporator for marine AC7. Condenser for ice machine8. Evaporator for water purifier9. Evaporation or condenser for mariculture constant temperature machine10. Condenser for dish washer11. Condenser/evaporator for industrial chillers.12. Condenser/evaporator for chemical industrial cooling system.13. Condenser/evaporator for marine or sea oil heat exchanger.      /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
