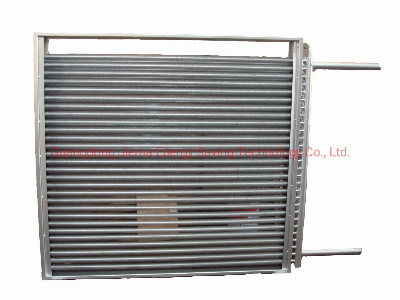

Industrial Steel Air Heat Exchanger for Power Plant

Industrial Steel Air Heat Exchanger for Power PlantDescription:Air to Air Heat Exchanger is a newly type Air Heat Exchanger used for waste heat recovery ,hightemperature gas utilization in power plant , glass industry ,and boiler plant.The air radiator is a maindevice of the heat exchangers using a cold medium and a heat medium for air cooling or heating. Itcan heat air if fed with high-temperature water, steam or heat transfer oil, or cool air if fed with saltwater, so it is extensively used in the warm-air heating, air-conditioning, cooling, condensing,dehumidifying and drying in fields such as light industry, architecture, chemical industry, machinery,textile, printing and dyeing, electronics, food, pharmaceutical industry, metallurgy, wood, plastics,rubber, etc.Mainly material : Charactistic: Plate Material : Stainless Steel 304 or 316L Shell frame : Carbon Steel or Stainless Steel Production Processing : 1>.Welding stainless steel plate 2>.Assemble and Installation 3>.Grinding- 4>.Polishing 5>.Pickling 6>.Test Pressure 7>.Packaging Features: 1>.High efficient 2>.Cleaning 3>.Environmental friendly 4>.Lower cost Our Product Certification: Rolling-type Air Heat ExchangerAdvanced steel-aluminum composite technology is adopted in rolling-type air heat exchanger which is featured by compact combination, small thermal resistance, strong heat transfer performance, small flow loss, good anti-corrosive performance, remote possibility for distortion under long-term cold/hot working conditions, and long service life, etc. Materials: Carbon steel-aluminum rolled sheet, stainless steel-aluminum rolled sheet and steel tube-aluminum rolled sheet.  Coiling-type Air Heat ExchangerCoiling-type air heat exchanger features compact structure, aesthetic appearance, easy installation, convenient management and long service life. It is applicable to centralized air-supply heating, local heating or other purposes. Materials: Carbon steel coiled sheet and stainless steel coiled sheet. High-frequency Welding Air Heat ExchangerHigh-frequency welding air heat exchanger has been extensively applied in such industries as petrifaction, power plant, power plant modification, air conditioning & refrigeration, boiler, finned-type coal saver and air preheater.The finned tube in high-frequency welding air heat exchanger is made by coiling band steel around plate fin and firmly soldering plate fin onto finned tube through using high-frequency welding process, which can ensure intensity of combination between finned tube and plate fin. Featuring high intensity, resistance to thermal vibration and mechanical vibration, good thermal expansion performance, large cooling surface and long service life, it has a wide range of applicable temperature, endurance of high pressure and other features.Factory working corner:  Reference Selection (heat exchanger tube  φ18 .Fin diameter φ38) heat exchanger area M 2surface Tube quantity Tube row quantityWidthTube lenght(mm)6008001000120016002000250030008343010.5 14.0       414.0 18.7       517.5 23.4       621.0 28.0       10351513.1 17.5 21.9      417.5 23.4 29.2      521.9 29.2 36.5      626.3 35.0 43.8      12360515.8 21.0 26.3 31.5     421.0 28.0 35.0 42.0     526.3 35.0 43.8 52.6     631.5 42.0 52.6 63.1     143695 24.5 30.7 36.8     4 32.7 40.9 49.1     5 40.9 51.1 61.3     6 49.1 61.3 73.6     163785 28.0 35.0 46.0 56.1   4 37.4 46.7 56.1 74.8   5 46.7 58.4 70.1 93.4   6 56.1 70.1 84.1 112.1   183875  39.4 47.3 63.1   4  52.6 63.1 84.1   5  65.7 78.8 105.1   6  78.8 94.6 126.1   203965  43.8 52.6 70.187.6  4  58.4 70.1 93.4116.8  5  73.0 87.6 116.8146  6  87.6 105.1 140.2175.2  2231055   57.8 77.196.4  4   77.1 102.8128.5  5   96.4 128.5160.6  6   115.6 154.2192.7  2431145   63.1 84.1105.1131.4 4   84.1 112.1140.2175.2 5   105.1 140.2175.2219 6   126.1 168.2210.2262.8 2631235   68.3 91.1113.9142.4 4   91.1 121.5151.8189.8 5   113.9 151.8189.8237.3 6   136.7 182.2227.8284.7 2831325    98.1122.6153.3 4    130.8163.5204.4 5    163.5204.4255.5 6    196.2245.3306.6 3031415    105.1131.4164.3 4    140.2175.2219 5    175.2219273.8 6    210.2262.8328.5 3231505    112.1140.2175.2 4    149.5186.9233.6 5    186.9233.6292 6    224.3280.3350.4 3431595    119.1148.9186.2144    158.8198.6248.218.75    198.6248.2310.323.46    238.3297.8372.3283631685     157.7197.1236.54     210.2262.8315.45     262.8328.5394.26     315.4394.2473Please provide the following working parameters, we will provide you with professional design and selection Suggestions.  Capacity (Kw/Kcal/h)Hot side medium Cold side medium Flow rate                               Flow rate                                                                             Inlet temperature Inlet temperature outlet temperature outlet temperature Working pressure Working pressure Allowable prssure drop Allowable prssure drop For more  Air Heat Exchanger information,Please Contact us !Web:jm-heat-exchanger.en.made-in-china.com/* January 22, 2024 19:08:37 */!function(
