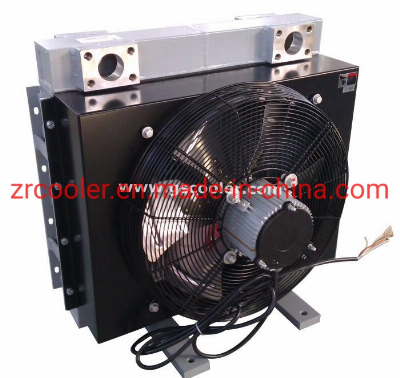

Aluminum Oil Cooler with Hydraulic Motor

Features:Bar & Plate Brazed Aluminum CoreRugged, Lightweight and Compact.Welded aluminum flange.Available in 6 sizes to accommodate flow ratings of 50 to 600 gpm 220 or 380 volt AC fansHydraulic fan motor drive availableBoth mobile and industrial applicationsCustomized units availableProduct DescriptionBasic Info.            CODE  type ODC01ODC02ODC03ODC04ODC05ODC06                                                                              Dimension    mmAmm3904905907508501000Bmm4906107279201035140Cmm80901001131251190Dmm290310350300345400Emm54066077797010851240Fmm290410527620735890Gmm53063073590010001160Hmm340350360380390410Imm   450460480Powerkw12-1520-2632~4050~7075~95105~140oil flowL/min50~15080~200100~250150~400200~500250~600oil inlet Temp[ºC ]ºC707070707070VolumeL6.129.4714.326.433.248.9cooling air flowm³/h360057008400130001700022200fan diametermm350450550690750900Motor voltagev220/380220/380220/380hydraulic        motorhydraulic        motorhydraulic        motorMax.working pressurebar202020202020environment TempºC353535353535   Product DescriptionP-Bar design for high volume OE Mobile ApplicationsStructure: Air cooled "plate and bar" design(P-Bar design)Incorporates radiator, hydraulic oil and charge air coolers into one packageMaterial: Aluminum alloyApplication: Construction Machinery, such as excavator, roller, bulldozer, paver, pulverizer, etc    Products StructureCore Structure-Aluminum plate&bar(P-BAR)Products Range:·Customised oil air cooler for compressors  ·Compressed air coolers and combined cooler for contruction machinery ·Oil coolers for hydraulic system and engines. ·Air coolers and radiators ·Complete fan units with DC/AC and hydraulic motors Cooling systems      Detailed Photos    Performance Curve  CertificationsManufacture Procsse-Modules are pressure and leak tested, assembled and packaged -prototypes and production products can be completed in a short lead time.  -production core geometries for radiators(water-air), oil coolers(oil-air), air coolers for engines(CAC). Air coolers for compressors(air-air), air-oil welded combos.  -P-Bar complete cooling packages can be equipped with fan, motor, finger guard, etc   Packaging & Shipping   Installation Instructions  Installation:1.To ensure the cooling effect, adequate air suction distance shall be maintained with 1/2 of the fan dianeter as the minimum suction distance.2.The two oil ports on the cooler can be used as the oil outlet or inlet according to the  actua conditions. When installing the oil inlet and outlet pipe please tighten the screws on the cooler with proper tools to avoid damage to the cooler;3.Applicable thread:PT(British),RC(Japan),ZG(China Standard) products of other specifications can be customized.4. To connect the oil filter in series, it must be installed at the front stage of the cooler5. Connect the electricity marked on the cooler to work. If it is DC or three-phase voltage, please confirm whether the wind direction is consistent with the wind direction (red arrow) marked on the cooler.Company Profile  Wuxi Zhengrui Heat Exchanger Co.,LTD is a special company which is engaged in design and manufacture for "aluminum plate-bar heat-exchanger". It is established by a group of special experts who have more than twenty years' industry design and manufacture experiences.Zhengrui supply global standard coolers and customized coolers for many uses including industrial hydraulic, air compressor, on-road&off-road vehicles and construction machinery applications etc.Now more than 50% ZR coolers are exported to all over the world, such as UK, Germany, USA, Canada, Australia, etc. We have long and stable cooperation with all the customers.Zhengrui professional technical team and manufacture team will provide you with excellent coolers. Company features:»Good business, technical communication» Years of industry design experience» Professional technical software support» Total cooling system solutions» Quality control» Professional teamwork» Delivery guarantee       Our Advantages   R&D is always as the leading force in Zhengrui development.Our R&D team provides:·The new product design.           ·Prototype built and validation.·The technology design.·Cooler design and production according to thermal data and drawing.After Sales Service  "ONE STOP"service is what we doing now.Varied products catalogues and flexibility is our value.1.Each product must be 100% tested before delivery2.Provide the technical design and solutions of your products3.Provide accessories for the products you buy at any timeFAQQ1. What is your terms of packing? A: Generally, ZRcooler pack our goods in wooden boxes . If you have legally registered patent, We can pack the goods in your branded boxes after getting your authorization letters. Q2. What is your terms of payment?A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.Q3. What is your sample policy? A: ZRcooler can su
