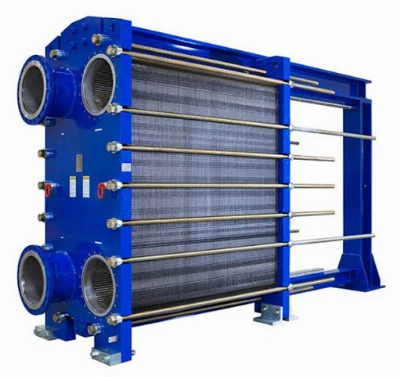

Stainless Steel High Quality Gasketed Plate Heat Exchanger

Product DetailsPlate heat exchanger is an ideal equipment for heat exchange between liquid and steam. The utility model has the advantages ofhigh heat exchange efficiency, small heat loss, compact and light structure, small floor area, wide application, long servicelife, etc. Under the same pressure loss, the heat transfer coefficient is 3-5 times higher than that of the tube heat exchanger,the floor area is one third of the tube heat exchanger, and the heat recovery rate can be as high as 90%.Introduction:Shandong Wintech plate heat exchanger is a kind of heat exchanger formed by pressing thin metal plates into heat exchange plates with certain corrugated points, then stacking them and transferring them with rack plates and clamping bolts. The working fluid flows in the narrow and tortuous channel formed between the two plates, and the hot and cold fluid flows through the channel plates between the plates for cold and heat exchange.Advantage:1. The core of the heat exchanger is a fully welded plate, and the blind plate is connected by a nut. The equipment can be quickly installed, disassembled and cleaned easily;2. Oblique corrugated symmetrical channel, turbulent heat transfer efficiency is higher;3. The combination of wide and short channels is suitable for working conditions that are easy to block;4. It occupies a small area and can be installed vertically or horizontally.5. A wider range of applicable fluidsTechnical Parameters:MediumGas to Gas, Liquid to Liquid, Gas to LiquidDesign Temperature:350ºCDesign pressure3.2 MPaPlate Material:304,316L,AL-6XN,Hastel loy C-276,254MO,nickel, nickel base alloy  Our serviceØ Competitive price;Ø Provide the technical design and solutions;Ø New equipment construction guidance;Ø Free on-site touring and introduction of our factory;Ø Variety types for selection, prompt deliver;Ø Strict product quality control;Ø On time delivery.  Hot Tags: corrugated welded plate heat exchanger, China, suppliers, manufacturers, factory, customized, ASME CODE, made in China Certificates:/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
