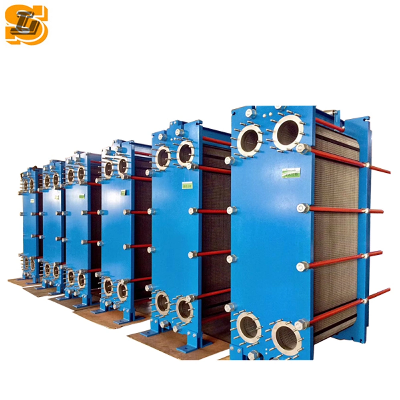

Industrial Air Compressor Plate Heat Exchangers

Product Description Principle:Gasket is attached to the heat transfer plate with forms flow channel and acts seal up the fluid not to leak to the outside.The number of the heat transfer plate is determined according to the amount of fluid,physical properties of fluid,the pressure drop and thermal condition. The covers prevent the plates bended from the difference of pressure.In the assembly of plate ,the surface with gasket is directed to the fixed cover and each plate is hanged in opposite direction alternately. Then two fluids can flow in their own area and transfer heat.     1. PLATE MATERIAL Stainless steel-clean water, river water, edible oil, and mineral oil Titanium and titanium palladium-sea water, salt water, salt. Hastelloy-sulfuric acid, hydrochloric acid, phosphoric acid 2. GASKET MATERIAL NBR (nitrile rubber)-water, sea water, mineral oil, brine HNBR-high temperature mineral oil, high temperature water EPDM(ethylene-propylene)-hot water, water vapor, acids,alkalis. HEPR-high temperature water vapor, acids and alkalis fluid. FKM-strong acids and strong alkalis 3. FRAME MATERIAL Standard: plastic coated carbon steel Special: stainless steel covering 4. CONNECTION MATERIAL Standard: EPR and NBR Special: Stainless steel,titanium 5. ACCESSORIES The insulation cover of heat exchanger can also be provided according to customer requirement   modelInterface size(mm)The maximum flow(m3/H)H(mm)B(mm)E(mm)F(mm)weight(kg)FHU523-MQ32145301853576096FHU550A-MQ5043630300395124130FHU550-MQ5043920320640140250FHU550-MZ5043920320640140250FHU550-BQ5043920320640140250FHU565S-BZ5043920320640140250FHU565S-MQ6572680400380202500FHU565S-MZ6572680400380202500FHU600-MQ10017010454547192251500FHU600-MZ10017010694707192251500FHU600-BQ10017010454547192251500FHU650-BZ10017010694707192251500FHU650-MQ150380181561012862904000FHU650-MZ150380181561012862904000FHU650-BQ150380181561012862903000FHU650-BZ150380181561012862903000FHU650S-MQ15038012006106902902200FHU650S-MZ15038012006106902902200FHU700-MQ200680220078014783385500FHU700-MZ200680220078014783385500FHU700-BQ200680220078014783384000FHU700-BZ200680220078014783384000FHU700S-MQ20068014507607283384000FHU700S-MZ20068014507607283384000FHU750-BQ250883268091019394408500FHU750-BZ250883268091019394408500FHU800-MQ300153027301150184259612000FHU80-MZ300153027301150184259612000FHU850-MQ350173027301150184259612000FHU850-MZ350173027301150184259612000/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
