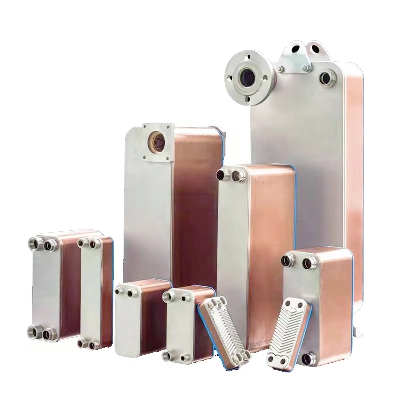

Brazed Plate Heat Exchanger for Water HAVC Oil Food

Product  Instruction:Brazed plate heat exchanger is a kind of non-sealed plate heat exchanger, which uses a special welding technology, each plate is nested to weld each other.  Makes it get rid of the ordinary plate heat exchanger rubber pad limited temperature and pressure, the temperature can reach 250 degrees, pressure can reach 30Mpa.  Because of the use of 0.3-0.4mm thin plate, so the heat transfer efficiency is improved.  In addition, because it is non-detachable, it is generally used for high purity media and rubber pads cannot be resistant to media.  Because its whole is not like ordinary plate heat exchanger by a frame fixed and using thinner sheet, so its assembly area can not be too large, with the current technology is not more than 8 square meters, but its heat exchange efficiency is about 2-3 times that of ordinary plate.   For the majority of users to save the investment and freight to provide a guarantee  1, compact structure, easy to install: the use of thin plate, high heat insulation coefficient, less liquid hysteresis  2, less water: brazing type plate heat exchanger heat exchange efficiency is high    Application Area:1.Refrigeration: Used as condenser and evaporator2.Hvac: intermediate heat exchangers used with boilers, intermediate heat exchangers in high-rise buildings, etc3.Chemical industry: soda ash industry, synthetic ammonia, alcohol fermentation, resin synthesis cooling, etc  4.Metallurgy industry: aluminate mother liquor heating or cooling, steelmaking,process cooling, etc5.Machinery industry: all kinds of quenching liquid cooling, reducer lubricating oil cooling, etc6.Power industry: high voltage transformer oil cooling, generator bearing oil cooling, etc7.Paper industry: bleaching process heat recovery, heating wash slurry, etc/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
