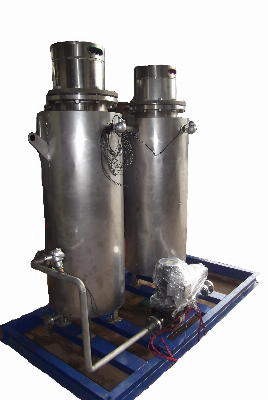

Intelligent Plate Heat Exchanger System

Intelligent plate heat exchanger systemPlate Heat Exchanger Advantages:     (1) High Heat Transfer Coefficients(2) Saving the installation space(3) Low contamination(4) Minimum heat loss(5) Applicability & standardization(6) Food grade material insure good quality       Standard Component Materials: Frame plate:Carbon steel, or packing stainless 304 or 316L. Nozzles:carbon steel,stainless steel or titanium.   Plates:Stainless steel 304 or 316L,Hastelloy Alloy ,Titanium , Nickel, SMO254 etc. Gasket:NBR,H-NBR,EPDM,Virton,other grades and material available on request. Clamping bolt: Galvanized carbon steel, stainless steel. Carrying bar:Galvanized carbon steel, stainless steel. Material Description CodeApplicable Temperature (ºC) Anti-corrosive Performance and Applicable Occasions      NBR N  -20~110  Hot air, water, non-polar oil, mineral oil, lubricant and silicone oil, etc.     EPDM E  -50~150   Vapor, polar chemical medium, alcohol, weak acid, weak alkali and oxidizing agent, etc.      F C  -40~100 Ammonia, mineral oil and lubricant, etc.     Virton F  0~180 Inorganic acid, alkali, mineral oil and Haloalkane, etc.Silicon Rubber Q  -65~230 Resistant to cold current and dry hotData of plate heat exchanger reference table:ModelSingle plate heat exchanger area(m²)Max flow(m³/h)Tranfer area(m²)Interface size(mm)Frame foot L ( mm )Net weight(kg)Overall size(mm*mm)Plate size(mm*mm)Plate angle hole size(mm)Plate corrugation depth(mm)The thickness of the plate(mm)BR0.050.052201DN4015644240*550497*176383.2 0.5BR0.050.052201.5DN4019346240*550497*176383.2 0.5BR0.050.052202DN4023048240*550497*176383.2 0.5BR0.050.052202.5DN4026452240*550497*176383.2 0.5BR0.050.052203DN4030458240*550497*176383.2 0.5BR0.050.052203.5DN4034063240*550497*176383.2 0.5BR010.11302DN40/50450134850*320663*246503.4 0.5BR010.11304DN40/50570152850*320663*246503.4 0.5BR010.11306DN40/50660164850*320663*246503.4 0.5BR010.11308DN40/50810172850*320663*246503.4 0.5BR010.113010DN40/50940181850*320663*246503.4 0.5BR010.113012DN40/501030195850*320663*246503.4 0.5BR010.113015DN40/501150225850*320663*246503.4 0.5BR020.2908DN65/805752851030*410826*329723.5 0.5BR020.29012DN65/806703151030*410826*329723.5 0.5BR020.29016DN65/808153451030*410826*329723.5 0.5BR020.29020DN65/809453751030*410826*329723.5 0.5BR020.29024DN65/8010354051030*410826*329723.5 0.5BR020.29030DN65/8011554351030*410826*329723.5 0.5BR0250.25908DN65/805753001200*410997*329723.5 0.5BR0250.259012DN65/806703831200*410997*329723.5 0.5BR0250.259018DN65/808154251200*410997*329723.5 0.5BR0250.259022DN65/809454731200*410997*329723.5 0.5BR0250.259028DN65/8010355121200*410997*329723.5 0.5BR0250.259032DN65/8011555531200*410997*329723.5 0.5BR0250.259040DN65/8012305941200*410997*329723.5 0.5BR03M0.312010DN1006703101160*510991*4061003.5 0.5BR03M0.312015DN1008153851160*510991*4061003.5 0.5BR03M0.312020DN1009454401160*510991*4061003.5 0.5BR03M0.312025DN10010654951160*510991*4061003.5 0.5BR03M0.312030DN10012005251160*510991*4061003.5 0.5BR03M0.312035DN10013505481160*510991*4061003.5 0.5BR03M0.312040DN10015805701160*510991*4061003.5 0.5BR03M0.312050DN10018106251160*510991*4061003.5 0.5BR03M0.312060DN10019006681160*510991*4061003.5 0.5Applications:FoodsMilk, juice, sugar solution, soy and sesame oil, liquor, beer, heating, sterilization/cooling for edible oil, etc., heat recovery, and CI P liquid heatingChemicalPetroleum, paraffin, various acids, sulfuric acid, kerosene, salt sulfate, zinc, nucleic acid, polymerization process, soft water cooling, heating for glycerine, etc., condensing ethanol, etc.TextileWashing water, NaOH solution, dyeing water cooling and waste heat recoveryElectric & electronicCirculating water, flushing coolant, transmission oil cooling, rectifier transformer, SCR cooling, high frequency heat treatment cooling, pure water treatment, electron tube cooling and blackening furnace coolingMechanical facilityMachineries cooling, emulsion, hydraulic oil, abrasive liquids cooling, compressor, industrial furnace cooling, transmission oil, autoclave water cooling and engine coolingShip-buildingCentral Cooling, Lub Oil, Jaket, Piston Water, Heavy Oil, Transmission Oil cooling, Diesel Oil, Heating Oil preheatingSteel IronMould cooling, cooling for continuous casting process, furnace, coking plant cooling, emulsion, ammonia water cooling, machineries, compressor cooling, washing oil cooling, hydraulic oil cooling, heat recovery for washing water and other waste heat recovery processingSurface treatmentSulfate cooling, phosphate, heating/cooling for pretreatment process liquid of coating, heat treatment liquid cooling, galvanizing and chrome coatingExtraction processCrude Alcohol, Soy Bean Oil, Cooling for fatty acid, etc. and heating for coconut oil, edible oil, etc.PharmacyCooling, heating and concentrating for extracting solutions, cream, sugar solution, emulsion, suspension, plasma, citric acid, etc.Paper pulpWashing water, chlorine water cooling and waste heat recoveryBuilding equipmentsHeating, hea
