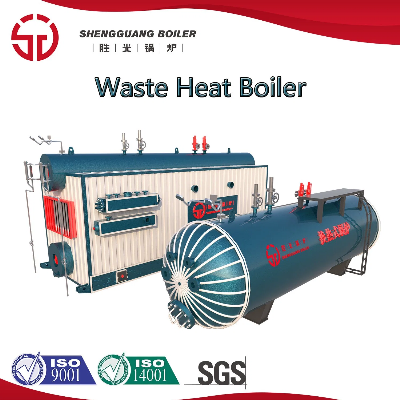

Customized High-Tech Waste Heat Recovery Boiler

Customized high-tech Heat recovery boilerRated capacity :1-20ton/hrDesign pressure :1.0Mpa (10bar/10kg/145psi)                                     1.25Mpa(13bar/13kg/180psi)                                      1.6Mpa(16bar/16kg/232psi)Steam temperature: 184ºC  194ºC  204ºC Strong applicability and extensive use.Our company can provide users with standardized waste heat boiler, but also customized one according to users' different needs with rich experience in designing corrosion-resistant and wear-resistant pipelines. It can be designed separately for high sulfur, high ash, low temperature and high hardness flue gas. The different designed waste heat boilers can transfer the required heat to users through saturated steam, superheated steam, organic heat carriers, hot water and other heat conducting media. It is widely used in power generation, petroleum, chemical industry, building materials, metallurgy, carbonization and other industries.System diagram of single-drum Biomass and coal fired BoilerCompact structure, easy installation.The waste heat boiler is compact in structure, small in volume.Fast-assembly structure, easy to install on site.Simple operation and easy maintenance.Automatic water replenishment , easy operation.Easy to maintain, low maintenance costs.According to their different structures, they can be divided into following types:1.hot tube waste heat boiler    2.pin type waste heat boiler   3.waste heat boiler for generator sets   4&5.exhaust flue gas fired waste heat boiler   and also finned tube waste heat boiler, EGB threaded tube waste heat boiler, bare tube waste heat boiler, shell type waste heat boiler and etc.Technical ParametersWaste heat boiler belongs to non-standard product, which usually needs to be calculated and designed according to the parameters provided by customers. Generally speaking, the design pressure of non-combustion waste heat boiler is 0.2-2.5 Mpa, the working pressure is 0.4-2.5 Mpa, and the steam output is 0.2-25 t/h.Some waste heat boiler technical parameters as following:SpecificationQ5-940-2-1.0Q16-900-6-1.25Q20-1050-9-2.5Q32-800-11-1.6Rated evaporation capacity(t/h)26911Rated working pressure(MPa)11.252.51.6Rated steam temperature(ºC)184250226204Water-supply temperature(ºC)202012520Inlet flue gas flow rate(Nm³/h)5000160002080032000Inlet flue gas temperature(ºC)9409001050800Outlet flue gas temperature(ºC)385164371179.9Heating area(m2)171.79536.1345916.6Boiler Installation SizeL×W×H (mm)6200×3440×84198035×3500×439012262×2680×486010500×3050×4150If you want a waste heat boiler pls try to provide the following parameters: AIts industry BFlue gas parameters 1Boiler inlet flue gas side pressure 2Boiler inlet flue gas range (operating conditions) 3Range of boiler inlet flue gas (standard condition) 4Design value of boiler inlet flue gas (standard condition) 5Boiler inlet flue gas temperature range 6Design value of boiler inlet flue gas temperature 7Boiler outlet flue gas temperature 8Boiler inlet flue gas composition (volume percentage)  CO  SO2  SO3 (if any)  CO2  H2O  O2  N2  HCL (if any)  Other special gases 8Boiler inlet flue gas dust concentration  Boiler inlet flue gas adhesion  Corrosiveness of boiler inlet flue gas 9Required resistance on the flue gas side of the boiler body 10Total air leakage requirements on the boiler flue gas side (if any) CBoiler parameters 1Boiler rated steam (if any) 2Boiler rated steam pressure 3Boiler rated steam temperature 4Boiler feedwater temperature DOther required parameters 1Elevation and size of smoke exit of industrial furnace 2Elevated smoke outlet elevation of waste heat boiler 3Waste heat boiler is expected to occupy land (length m × width m × height m) 4Does the waste heat boiler need to be supplied by the manufacturer to support the top rain shelter? 5Boiler layout (vertical or horizontal layout) 6Owned plant's own compressed air pressure 7Whether the owner's plant has its own natural gas source 8Meteorological conditions at the owner's plant (mainly local atmospheric pressure and seismic fortification intensity) EAuxiliary machine FOther special requirements  CERTIFICATEClass A Boiler manufacture,  Design Licence of special equipment,  Class A Manufacture License of special equipment,  Installation Repair and Maintenance License of special equipment,  OHSAS18001,  ISO9001,  ISO14001,  DOSHFAQ:Q: Are you manufacturer?A: Yes, we are manufacturer. Our factory established in 1978 in Pingdu Qingdao.Q:How to choose a boiler type ?A: Generally we should confirm the boiler type (steam or hot  water),capacity,pressure(or output,temperature)and fuel(coal, biomass, gas or oil) of the boiler.Q: How long is the warranty time for the boilers?A: Based on highly responsible for your esteemed company, due to equipment itself failure, our company provides one year free maintenance.Q: How about the installation ?A:We could offer you 2 proposals.1)Guide installation Our company arranges 1-2 staffs to guide the installation of boiler on
