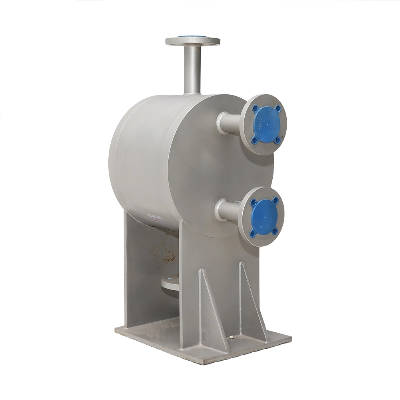

High Temperature and High Pressure Plate and Shell Heat Transfer Equipment

Product Description 1,The plate and shell heat exchanger adopts the plate structure of the plate heat exchanger, has a large heat exchange area, and can achieve efficient heat transfer.2,Its compact structure and relatively small footprint make it suitable for installation on limited sites.3,The shell of a plate-shell heat exchanger is usually made of a high-strength material that can withstand high pressures.4,Its plate structure makes cleaning more convenient, can effectively reduce dirt accumulation and blockage problems, and improve the efficiency and life of the heat exchanger.5,The plates and shells of plate and shell heat exchangers can be manufactured using different materials to adapt to different working conditions and media.  Product ParametersSerial numberCorrelation parameterMinMax1Design pressure0.6Mpa4.5Mpa2Test pressure0.78Mpa5.85Mpa3Design temperature-40ºC450ºC4Flow range10m³/h4500m³/h5Heat transfer area2.4sq.m1200sq.m6Heat exchange capacity0.1MW50MW7Heat transfer coefficient20W/sq.m.ºC3500W/sq.m.ºC  Detailed Photos  Company ProfileOur AdvantagesFAQ/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
