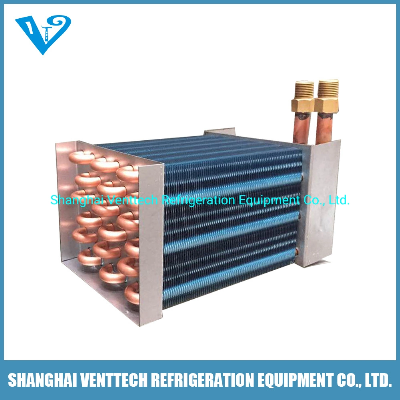

Efficient Diesel Engine Tube Fin Heat Exchanger

Efficient Diesel Engine Tube Fin Heat ExchangerTube Fin Heat Exchanger Features:Tube sizes range from 7mm to 15.88mm. Materials include copper, aluminum, stainless steel, and others. This product is brazed or welded depending on the material and application.Raw materialCopper tube (inner smooth or inner grooved): O.D. Φ 7, Φ 7.94, Φ 9.52,Wall thickness:t=0.32-0.36Bare, hydrophilic Al foil(green antibacterial hydrophilic Al foil or slica antibacterial Al foil )Side plate: galvanized steel plate:t=0.82.0Application1P 5P home air-conditioner, Bus air-conditioner, Center air-conditioner for householdKey processTube bending, Punching the fins, Tube expanding, Degreasing, Welding and assembling, Leakage test, Drying, (Bending), Inspection, PackingTechnical standardsSpecificationHoles distanceFin typeExpansion ability Φ 721×12.7isoceles triangle shapeV wave fin, Slit fin, louver fin6Rows, 36HolesL: 1800mm(max)Fin pitch:1.2 1.9 Φ 7.9422×19.05equilateral triangle shapeV wave fin,Louver fin4R, 36HL: 1200mm(max)Fin pitch:1.2 2.0 Φ 9.5225×21.65equilateral triangle shapeFlat fin, Slit fin, V wave fin6R, 44HL: 2500mm(max)Fin pitch:1.2 2.0PerformanceCan satisfy the capability requirementsCapacity4.0 million sets per year (12500sets per day)Residual moisture≤ 25 /Residual impurity≤ 30 /R134a Cooling System Tube Inside StandardsOur Advantages:1) Professional manufacturer, ROHS, BV, SGS, CE2) Three- step Quality control. Inspect the raw material, unfinished products and finished products.3) Experienced technical staff. We have senior engineers and technicians more than 20 people with many years of experiences. 4) More than 10 years' experiences of manufacturing. Cooperate with many famous brands: Midea, Gree, TCL, LG, Samsung, Hitachi, Panasonic etc.5) Our products can be customized. We can produce for clients according to the sample or drawings.6) Very competitive price with high quality products and perfect delivery date.Tools list of Tube Fin Heat ExchangerFinTypeCopper TubeO.D.(mm)Row Space(mm)Hole Space(mm)Fin Thickness(mm)Fin Space (mm)Flat finSine wavewith blade finSmooth sinewave finWindow finSesamoid fin A712.7210.105//1.31.3/ B713.217.60.105//1.31.3/ C712.720.40.105//1.3~1.81.3~1.8/ D7.9415.8825.40.1051.8~3.01.8~3.01.8~3.01.8~3.0/ E7.9419.05220.105~0.131.4~3.01.4~3.01.4~3.01.4~3.0/ E9.522225.40.105~0.151.6~3.21.6~3.21.6~3.21.6~3.2/ F9.522225.40.18~0.43.5~6.35//// G9.5221.65250.105~0.181.6~3.21.6~3.21.6~3.21.6~3.2/ H9.5221.65250.15~0.243.2~6.353.2~6.353.2~6.35// I12.7527.531.750.115~0.151.5~3.51.5~3.51.5~3.51.5~3.51.6~3.2 J15.883338.10.115~0.151.5~4.01.5~4.01.5~4.0// K15.8834.64400.115~0.15/2.6~3.52.6~3.5//   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
