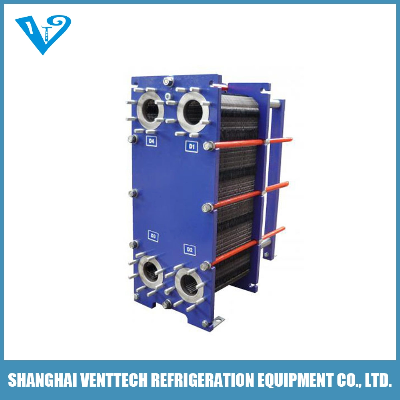

2022 Stainless Steel 316 Plate Gasket Plate Heat Exchanger

2017 top quality Stainless Steel 316 Plate Gasket Plate Heat Exchanger Features   modelInterface size(mm)The maximum flow(m/H)H(mm)B(mm)E(mm)F(mm)weight(kg)FHU523-MQ32145301853576096FHU550A-MQ5043630300395124130FHU550-MQ5043920320640140250FHU550-MZ5043920320640140250FHU550-BQ5043920320640140250FHU565S-BZ5043920320640140250FHU565S-MQ6572680400380202500FHU565S-MZ6572680400380202500FHU600-MQ10017010454547192251500FHU600-MZ10017010694707192251500FHU600-BQ10017010454547192251500FHU650-BZ10017010694707192251500FHU650-MQ150380181561012862904000FHU650-MZ150380181561012862904000FHU650-BQ150380181561012862903000FHU650-BZ150380181561012862903000FHU650S-MQ15038012006106902902200FHU650S-MZ15038012006106902902200FHU700-MQ200680220078014783385500FHU700-MZ200680220078014783385500FHU700-BQ200680220078014783384000FHU700-BZ200680220078014783384000FHU700S-MQ20068014507607283384000FHU700S-MZ20068014507607283384000FHU750-BQ250883268091019394408500FHU750-BZ250883268091019394408500FHU800-MQ300153027301150184259612000FHU80-MZ300153027301150184259612000FHU850-MQ350173027301150184259612000FHU850-MZ350173027301150184259612000  Technical Data Moldclamp sizemax widthmax heightmax lengthinterface sizemax number of chipmax flowBB30HN(2.4+X)180490680329013BB60BN(2.0+X)32093012006025036BB60HN(3.0+X)32093012006020336BB65TN(4.0+X)41070014006513072BB100BN(3.95+X)47010691600100278140BB100HN(3.95+X)47010691600100180140BB150BN(2.5+X)61018153000150600360BB150TN(3.95+X)61018153000150450360BB200TN(2.5+X)80014352700295285520BB200HN(4.0+X)78021503000200420600BB250BN(2.5+X)92029003300250500900BB300BN(3.5+X)110024153360300300997  Application We are a professional heat exchanger, condenser, evaporator and heat pump manufacturer in China, which has more than 15 years experience in HVAC area. Our products have been exported to Europe, USA, Japan and Middle east etc. Plate heat exchanger Packing details: We accept you package design, if you have special demand, if not, we will provide an individual package for you. Why choose us? 1. We have technicians to research, manufacture and develop AUTO AC Parts toassure the quality. 2. We have experienced and dedicated core members to offer you professional and reliable services. 3. We have purveyed customers with a greatest, lowest wholesale price.  The plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the two fluids between which heat transfer will take place. The plate pack is assembled between a fix frame plate and a movable pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the inter plate channel and directs the fluids into alternate channels. The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program. The plate corrugations promote fluid turbulence and support the plates against differential pressure. The frame plate and the pressure plate are suspended from an upper carrying bar and located by a lower guiding bar, both of which are fixed to a support column. Connections are located in the frame plate or, if either or both fluids make more than a single pass within the unit, in the frame and pressure plates. Advantages of the Baode Gasket Plate Heat Exchanger *Space saving and energy efficient Baode plate heat exchanger are the system builder's dream! With their compact designs they require 20-50% less space in your system than a comparable shell-and-tube unit. Since they require up to 80% less cooling media, you can fit smaller pumps that will consume less energy.   Working principle Channels are formed between the plates and the corner ports are arranged so that the two media fl ow through alternate channels. The heat is transferred through the plate between the channels, and complete counter-current flow is reated for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer.   STANDARD MATERIALS Frame plate: Mild steel Epoxy painted Nozzles: Carbon steel Metal lined: Stainless steel, Titanium Plates: Stainless steel Alloy 316 or Titanium A great advance on conventional PHEs    Way ahead of shell-and-tubes No thermal fatigue Cyclic heating and cooling produces thermal fatigue in rigid steam heaters like straight shell-and-tubes. This often results in cracked and worn components that demand maintenance and repair, thereby causing unwanted system downtime. The combination of thin plates and flexible gaskets in the BH Series prevents thermal fatigue by allowing the units to expand and contract in response to temperature changes. Fine temperature control Rapid heat transfer resulting from the small hold-up volume and high surface/volume ratio of the plates enables a fast response to temperature control.   Application Food industry: Milk pasteurization Milk and beverage pasteurization, Wine temper
