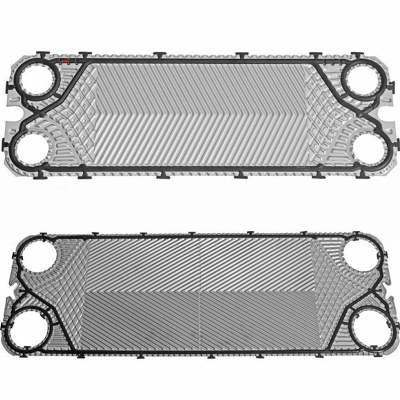

M6b/M15m/Mx25m Plate Heat Exchanger Plate in 0.5mm 0.6mm

Plate heat exchanger plate is specially used to isolate medium and conduct heat exchange in plate heat exchanger, which is an important part of plate heat exchanger. Its main materials include stainless steel (SUS304.316), titanium and titanium palladium (Ti, Ti Pd), 20Cr, 18Ni, 6Mo (254SMO), alloy (C276), copper (H68), etc.  Plate TypeSingle plate for PHEFlow Channel Between Plates3.5mm ~12.0mm (Optional depends on working condition)Plate Thickness0.4mm ~ 1.0mmHeat Transfer Plate MaterialStainless steel 304, 316/316L, 254 SMO, Titanium, Hastelloy C-276, othersGasket MaterialNBR, EPDM, HNBR, HEPDM, NBR-HT, FKM, Viton A, Viton GPressure Plate MaterialCarbon steel, stainless steel and others on requestTemperature Range-50ºC ~ +180ºC Varies with the media and gasket selection.Maximum PressureMaximum standard pressure 10 bar / 16 barPort ConnectionDN32, DN50, DN80, DN125, DN150, DN200, DN250, DN350   BrandsModelAlfa lavaleM3, M15B, MX25B, TL10, M6B, M15M, MX25M, TL6, M6M, T20B, AK20M, P16, M10B, M20M, TS6M, P26, M10M, M30B, TS20M, P36APVH17,N35, J185, J107, J092, J060GEAVT04,VT10,VT20,NT50X,NT50T,NT50M,NT100T,NT100M,NT100X,NT150L,NT150S,NT250S,NT250M,NT250L,NT350M,NT350L,NT350S,NT500T,NT500M,NT500XSwepGL13,GX60,GX145 ,GX18,GX64,GC26,GX26,GX85,GC51,GX42,GX91,GC60,GX51,GX100SondexS4,S7,S8,S9,S14,S19,S21,S22,S31,S37,S41,S42,S43,S62,S65,S81,S100,S121VicarbV4,V8,V13,V20,V28,V45,V60,V110,V130FunkeFP02,FP04,FP08,FP10,FP14,FP16,FP20,FP22,FP31,FP40,FP41,FP50,FP60,FP80,FP205ThermowaveTL90,TL150,TL200,TL250,TL400,TL500,TL650 We are developing more models, welcome your inquiry. If you need a large number of plates, we can also customize the mold for you.High temperature corrosion resistance:The plate is made of 304/316L/titanium plate/Hastelloy high-strength corrosion-resistant material, free from high temperature medium, and has a long service life.Corrugated runner, high heat transfer: The special corrugated structure of the plate enables the fluid to obtain a high heat transfer coefficient at a low flow rate, which is 3-5 times that of the traditional shell.Diversion area design, less scaling: The design of the split flow area has high plate pressing accuracy, uniform surface medium flow rate, pressure drop, and is not easy to scale, which can improve the overall heat transfer efficiency.Complete molds: Imported plate exchange and domestic plate exchange, complete molds, meet a variety of media and working conditions, select a variety of adhesive strips, and have a wide range of applications.We provide various plate-like patterns with different pressing depths and angles to allow the media containing particles and fibers to pass through the free flow pattern of the heat exchanger unhindered.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
