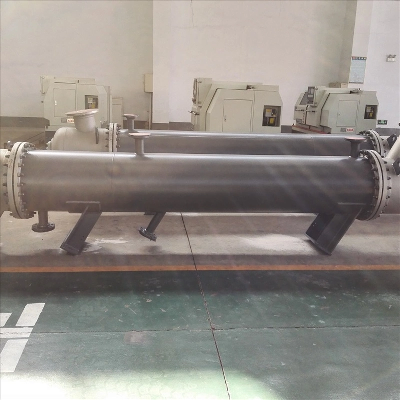

Shell Tube Type Heat Exchanger

HEAT EXCHANGER OF ALL KINDS PROFESSIONAL MANUFATURER Advantage of plate heat exchanger 1. Small volume, Low investment, operation and maintenance costs. 2. Highly efficient heat transfer- Heat transfer coefficient is 3000~6000W/M2. ° C, Which is high average 3~5times. 3. More effectively cooling and heating 4, Easy to fit, add or change plate. 5. Convenient disassembly, cleaning, maintenance and repair 6. Environmental protection Company feature 1. Focus on heat exchanger 2. Pay attention to client's require 3. Reply massage at the first time 4. Delivery in time Working principle Heat exchanger type: Gasket Plate heat exchanger The plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the two fluids between which heat transfer will take place. The plate pack is assembled between a fix frame plate and a movable pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the inter plate channel and directs the fluids into alternate channels. The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program. The plate corrugations promote fluid turbulence and support the plates against differential pressure. The frame plate and the pressure plate are suspended from an upper carrying bar and located by a lower guiding bar, both of which are fixed to a support column. Connections are located in the frame plate or, if either or both fluids make more than a single pass within the unit, in the frame and pressure plates. Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate channels. The heat is transferred through the plate between the channels, and complete counter-current flow is created for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer. Application Food industry: Milk pasteurization Milk and beverage pasteurization, Wine tempering, Bottled water treatment, CIP (Cleaning-in-Place) heating, Reverse osmosis water. Marine application: Central cooling of the main or auxiliary engines or turbines, Lubrication oil cooling, Re-cooling of circulated water for cooling cylinders, pistons, injection nozzles, Cooling of oil, compressor oil and other lubricants, Preheating of lubrication oil and heavy fuel oil, Preheating of seawater for fresh water production, Heat recovery, Heat exchange to air-condition the passengers' cabins and freight spaces Others: Turbine oil cooler, Chemical industry, district heating, district cooling, swimming pool heating, solar heating, textile printing & dyeing industry, pharmacy, food, chemical, paper making, steel and electromechanical and so on Warranty We promise 10 year guarantee, all reasonable relevant cost will be undertaken by us in the first year if our heat exchanger fail to work due to quality problem, More information, please feel free to contact us. Name: Jessie Hao       Material  of  PlateSuited  Liquid  KindsStainless  Steel  (SUS304.   316  Etc)Pure  Water,   Normal  Water,   Oil  for  eating,   Mineral  OilTi,   Ti-pdSea  Water,   Saline  Water,   Mineral  Water20Cr,   18Ni,   6Mo  (254SMO)Dilute  Sulphuric  Acid,   Organic  Water  SolutionNiHigh-temp  and  concentration  caustic  sodaHastelloy  (C276,   D205,   B2G)Concentration  Sulphuric  Acid,   Hydrochloric  acid,     Phosphoric  acid  Material  of  GasketOperating  Temperature  ° C Suited  Liquid  KindsNBR-15~+135° CWater,   Sea  Water,   Mineral  Oil,   Salty  WaterEPDM-25~+180° CHot  Water,   Steam,   Acid,   CausticF26-55~+230° CAcid,   Caustic,   FluidTPF0~+160° CConcentrated  Acid,   Caustic,   High-temperature  Oil,   Steam/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
