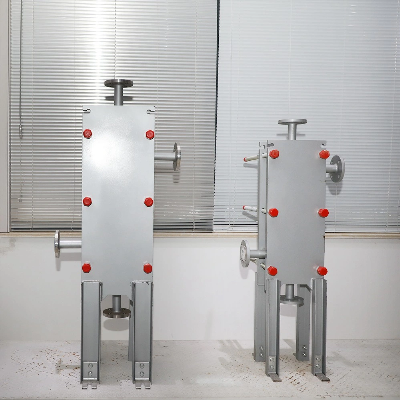

All Welded Heat Exchangers for Petrochemical Industry

Product Description  1,All welded heat exchangers can achieve efficient heat conduction, improve heat exchange efficiency, and maximize the use of heat energy.2,With good strength and sealing, can withstand high pressure and high temperature working environment.3,It can resist the erosion of chemical media, extend the service life, and is suitable for the treatment of corrosive media.4,Compact design, small footprint, suitable for limited installation space5,The internal fluid channel is smooth, easy to repair and clean, and the use and maintenance cost is low6,Customized design according to different process requirements and fluid media to meet user needs.  Product ParametersSerial numberCorrelation parameterMinMax1Pressure rangevacuum4.0Mpa2Temperature range-50ºC350ºC3Heat transfer area1square meter600square meter4Flow range1m³/h6700m³/h5Design criteriaASME,NB/T47004.1-2017,GB/T150-2011,PED Etc.Customized sheet materials on request Serial numberPlate MaterialMaterial typeApplicable occasions1TitaniumTA1River water, salt water, seawater, chlorine ions2HastelloyC276 C-2000Concentrated sulfuric acid, hydrochloric acid, phosphoric acid, strong oxidizing medium, etc.3Stainless Steels304/304L/316LClean water, river water, edible oil, mineral oil, acid and alkali media and corrosion is more serious occasions (should not have chloride ions occasions)4Nickel-based alloyN6High temperature, high concentration of caustic soda and corrosive chlorine ions5Super Stainless Steel254SMO/904L/2205/2507Organic solvents, intergranular corrosion, chloride corrosion Detailed Photos Company Profile  Our AdvantagesFAQ /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
