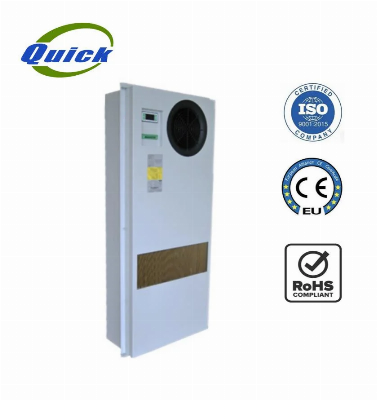

Quick 48VDC 80W/K Heat Exchanger

This series of products can be widely used in enclosed area for climate control, such as wireless communication cabinet, battery cabinet,industry control cabinet etc  Product Design Feature- Remote measure, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;- Strict process control and international brand parts deployed to ensure high quality and reliable of this product;- Multiple self protection design & Interchangeable monitoring software interface, RS485 communication (Modbus protocol);- Circulation fans stepless speed regulation function;- LED Display, all the settings can changed at the field;- The heating function is optional- Dry contact alarm output, NO/NC optional;Product Offering Portfolios (Enable customized design)Product ModelCooling Capacity Dimension(H*W*D)(mm)Rated voltagePower ConsumptionNoise LevelTE004/E/D40W/K622*344*200-48VDC80W64dB(A)TE005/E/D50W/K622*344*200-48VDC80W64dB(A)TE006/E/D60W/K832*414*99-48VDC68W65dB(A)TE008/E/D80W/K904*404*146-48VDC68W50~65dB(A)TE010/E/D100W/K994*416*213-48VDC129W50~65dB(A)TE012/E/D120W/K994*416*192-48VDC190W50~65dB(A)TE015/E/D150W/K1250*522*260-48VDC190W65dB(A)TE018/E/D180W/K1250*522*240-48VDC190W50~65dB(A)TE026/E/D260W/K1304*624*260-48VDC380W67 dB(A)Products ConfigurationProdcuts TestingProducts PackingProducts Applications  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
