China Supplier PTFE Heat Exchanger Best Price

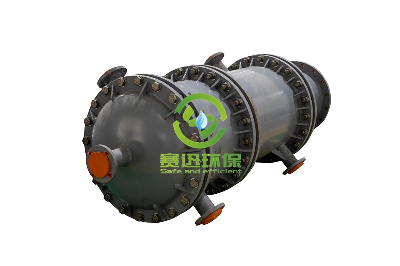

    The PTFE heat exchanger which we developed a special process to welds the PTFE tube with the PTFE plate is widely using in chemical and waste heat recovery applications.    PTFE has excellent chemical stability,corrosion resistant,sealing,high lubrication,non-sticky,coefficient is large,it is not easy to fouling,forming scale,thereby maintaining a very stable heat transfer efficiency,small volume,light weight,compact structure.   The flexural fatigue life is more than 100thousand times,the impact strength is 1.09J/cm at-57 degree,and the 120 degree is 1.03J/cm,so it is made into special shapes and runs reliably for a long time under the condition of certain impact and vibration of the fluid.   The application areas are mainly in the field of the strong corrosion,high purity solvent production industries.ITEMDATAPTFE tube thickness0.5mm-1mmOverall heat transfer coefficient160w/m².ºC-260w/m².ºCElongation at Break weft 200%;  warp 300%Bending Fatigue testMore than 100 thousand timesWelding range More than 2cmTemperatur tolerance-80ºC-180ºCWithstand voltage0.9mpa-0.6mpaCorrosion allowance0mm   HOT SALES1-Bundle fastening nut;2-Bundle fastening bolt; 3-Bolt wire hole for butt flange;4-Contact(F4);5-F4 Tube plate;6-Head pressure;7-Barrel flange fastening bolt;8-Barrel flange fastening nut;9-Tube pitch nut;10-Bundle spacing screw;11-Internal pressure ring;12-control;13-support;14-baffle plate;15-housing;16-Drain outlet;17-inlet/outlet;18-Emptying;Shell and tube ptfe heat exchanger  CERTIFICATESABOUT US  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
