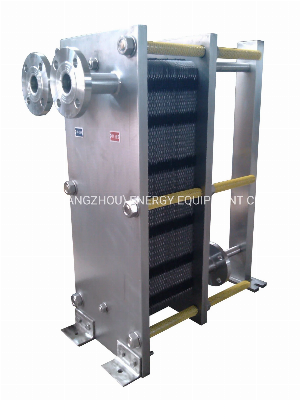

Stainless Steel Heat Exchanger for Evaporator Quality Phe

Plate heat exchanger is separated by a certain distance, through the sealing gasket pressure formed by the channel. The hot and cold medium, the two kinds of fluid with temperature difference, will enter the plate channel from the corner hole through the heat transfer, and the adjacent channel fluid direction, whether countercurrent or downstream, will exchange heat through the plate. Heat exchange plate is made of stainless steel plate pressing molding, it has 4 flow hole, middle pressure adult shape corrugated, pressure around the sealing groove. The sealing groove is provided with a sealant pad. The heat exchange plate is positioned and aligned by two guide rods, and the two clamping plates are compressed by clamping bolts to form the heat exchange runner in the inner cavity of the heat exchanger.  How It WorksAs a new efficient and compact heat exchanger, this product consists of multiple parallel corrugated-surface thin metal sheets that overlap and are then fixed by lamp plates and bolts.                 Product Characters  EFFICIENT        High heat transfer coefficiency -- corrugated stainless steel plate and counter flow style       Maximumheat transfer coefficient: 7000W/m2K    CUSTOM-MADE         Wide selection of materials -- plates(SS304, SS316L, SMO254,Ti,Ni,Hastelloy), gaskets(NBR, EPDM, HNBR, Fluororubber/Viton, Silicon)        Multi-media available -- water to water(fluid to fluid), steam to water(gas to fluid)        According to various applications, we will design the optimal product for your requirements   CONVENIENT        Easy cleaning -- smooth surface, detachable plates       Small floor area -- compact size Heat exchange principle: the cold working fluid and the hot working fluid flow through the narrow and winding passage made of two neighboring plates alternately and realize cold and heat exchange through the plates separating the two working fluids. RELIABLE                                          15-year experience in heat exchanger and pressure vessel       2 production bases -- Guangzhou; Hubei       Strong technical team -- 5 senior engineers (over 20 years experience)       Quality guaranteed --  CE,SGS,ISO9001 certified, 18 patents       Warranty -- 1 year guarantee Plates and Gaskets The plate heat exchanger's plate materials and corresponding applicable places are given in Table 1 and its gasket materials and corresponding applicable places in Table 2 for your reference.  Table 1    Plate MaterialsMaterial nameThickness(mm)Material gradeApplicationsStainless steel0.5-0.8304,321,316,316LPlaces with serious corrosion caused by acid or base mediums and places not suitable for chloride ionsCommercial pure titanium0.5-0.8TiAlkali or salt making places, sea water desalination places, low-temperature places, freezing places or places with chloride-ion corrosionNickel0.5-0.8NiPlaces resistant to corrosion, hot alkali liquor corrosion, neutral solutions or subacid solutionsAcid-resistant steel0.5-0.8RS-2, SM0254, HC-276Sulfuric acid field and the fields with acid corrosionTable 2   Gasket MaterialsMaterial nameCodeApplicable temperatureApplicationsNBRN-20~110ºCWater, non-polar oil, mineral oil, lubricating oil, silicon oil, etc.EPDME-20~150ºCSteam, water, ozone, polar chemical mediums, alcohol, weakacids, weak bases, salt solutions, etc.Chloroprene rubberC-40~100ºCAmmonia, mineral roil, lubricant, freon, etc.FluororubberF0~180ºCInorganic acids, bases, mineral oil, halohydrocarbon and oxidantSilicon rubberQ-40~200ºCFood field, etc.For more information, feel free to contact us !Company profile:  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
