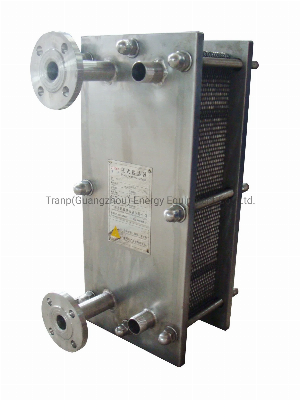

Detachable Plate Heat Exchanger for Food Industry with Gasket

Plate heat exchanger is a high-efficiency heat exchanger made up of a series of metal sheets with a certain corrugated shape. Thin rectangular channels are formed between various plates, and heat exchange is carried out through the plates. Plate heat exchangers are ideal equipment for liquid-liquid and liquid-vapor heat exchange. It has the characteristics of high heat exchange efficiency, low heat loss, compact and lightweight structure, small footprint, wide application, long service life and so on. Under the same pressure loss, the heat transfer coefficient is 3-5 times higher than that of the tube heat exchanger, the floor space is one-third of the tube heat exchanger, and the heat recovery rate can be as high as 90%.  EFFICIENT        High heat transfer coefficiency -- corrugated stainless steel plate and counter flow style       Maximumheat transfer coefficient: 7000W/m2K CONVENIENT        Easy cleaning -- smooth surface, detachable plates       Small floor area -- compact size  "high efficiency "" energy saving "" space saving "" easy maintenance "4 features in one of the plate heat exchanger (PHE) can be called the ideal heat exchanger. Its heat conduction plate adopts stainless steel or titanium sheet stamping into corrugated shape to improve its heat transfer efficiency. Mount the required number of heat conduction plates with sealing gaskets on the guide rod, and fix them with fastening bolts and nuts between the fixing frame and the moving frame. High temperature fluid and low temperature fluid flow alternately with the gap between each plate as the flow channel. The heat exchanger is a compact and high performance heat exchanger with complete countercurrent heat exchange by means of a heat conducting plate.            Product Characters  CUSTOM-MADE         Wide selection of materials -- plates(SS304, SS316L, SMO254,Ti,Ni,Hastelloy), gaskets(NBR, EPDM, HNBR, Fluororubber/Viton, Silicon)        Multi-media available -- water to water(fluid to fluid), steam to water(gas to fluid)        According to various applications, we will design the optimal product for your requirements         RELIABLE                                          15-year experience in heat exchanger and pressure vessel       2 production bases -- Guangzhou; Hubei       Strong technical team -- 5 senior engineers (over 20 years experience)       Quality guaranteed --  CE,SGS,ISO9001 certified, 18 patents       Warranty -- 1 year guarantee      How It WorksAs a new efficient and compact heat exchanger, this product consists of multiple parallel corrugated-surface thin metal sheets that overlap and are then fixed by lamp plates and bolts. Heat exchange principle: the cold working fluid and the hot working fluid flow through the narrow and winding passage made of two neighboring plates alternately and realize cold and heat exchange through the plates separating the two working fluids.                               Plates and Gaskets The plate heat exchanger's plate materials and corresponding applicable places are given in Table 1 and its gasket materials and corresponding applicable places in Table 2 for your reference.Table 1    Plate MaterialsMaterial nameThickness(mm)Material gradeApplicationsStainless steel0.5-0.8304,321,316,316LPlaces with serious corrosion caused by acid or base mediums and places not suitable for chloride ionsCommercial pure titanium0.5-0.8TiAlkali or salt making places, sea water desalination places, low-temperature places, freezing places or places with chloride-ion corrosionNickel0.5-0.8NiPlaces resistant to corrosion, hot alkali liquor corrosion, neutral solutions or subacid solutionsAcid-resistant steel0.5-0.8RS-2, SM0254, HC-276Sulfuric acid field and the fields with acid corrosionTable 2   Gasket MaterialsMaterial nameCodeApplicable temperatureApplicationsNBRN-20~110ºCWater, non-polar oil, mineral oil, lubricating oil, silicon oil, etc.EPDME-20~150ºCSteam, water, ozone, polar chemical mediums, alcohol, weakacids, weak bases, salt solutions, etc.Chloroprene rubberC-40~100ºCAmmonia, mineral roil, lubricant, freon, etc.FluororubberF0~180ºCInorganic acids, bases, mineral oil, halohydrocarbon and oxidantSilicon rubberQ-40~200ºCFood field, etc.Q&A1. Q: How long can we deliver goods?A: It would be 15-25 days after payment and drawing sketch confirmed2. Q: Can your company supply an after-sales warranty?A: Yes, we can supply 1-year after-sales warranty against B/L date.3. Q: What payment terms can you accept?A: We can accept L/C, T/T, etc.4. Q: Can you accept customized order?A: Yes, we accept, we have a very professional technical group who can design the special products according to your basic parameter/ data sheet/ drawings or sample.5. Q: Do you have your own factory or just you are a trading company?A: We are the direct factory group, one is in Guangzhou City, Guangdong Province, another is in Huanggang City, Hubei Province.6. Q: Is OEM order acceptable to your company?A: Yes, OEM is Welcomed.7. Q:
