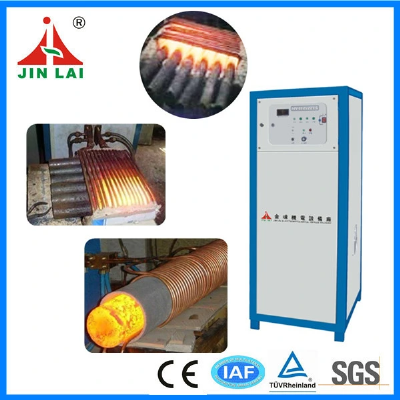

Factory Price Medium Frequency Electric Induction Heater Manufacturer (JLZ-110)

  Factory Price Medium Frequency Electric Induction Heater Manufacturer(JLZ-110)Main Feature:Big power, low frequency and good diathermancy.High frequency, low power consumption, easy installation and simple operation.It can continuously work for 24 hours for the comprehensive full load design.It adopts the IGBT inverter circuit in parallel connection, which ha high load adaptability.It has functions as over-voltage, over-current, over-heat, phase loss and water shortage alarm indications as automatic control and protection.Compared with other heating models, it can significantly promote the economic benefits, improve the quality of heated work pieces, save the energy and material, alleviate labor intensity and improve the production environment.Technical Parameters: ModelJLZ-110KWInput power desire3 phase 380V 50/60HZInput power110KVAMax input current175AOutput current30-200AOutput voltage70-550VOscillate frequency1-20KHZCooling water desire>0.2MPa  10L/MinDuty cycle100% 40°CDimensions670*620*1600mmNet weight160kgCable length2-6(Meters)Spare Parts for JLZ-110KWItemName of machine or partsSpecification Amount1JLZ-110KW Generator-1 pcs2Foot pedal 3 core1 pcs3Induction Coils-2 sets4Instruction Manual-1 pcs5Product catalogs-2 setsPhotos of JLZ-110KW MachineApplications: Melting, Forging, etc.1. Melting    Mainly used for melting and heat preservation of Cast iron, Alloy steel, Stainless steel, Gold, Silver, Other magnetic materials, as well as Copper, Brass, Bronze, Aluminum, Zinc, and Other non-magnetic materials.   Machine models and maximum melting ability(the first:50-60mins/furnace.the second:20-30mins/furnace)ModelSteel ,ironCopper, Gold , SilverAluminumJLZ-15 15KW Melting Furnace 10KG3KGJLZ -25 25KW Melting Furnace5KG 20KG6KGJLZ -35 35KW Melting Furnace10KG 30KG10KGJLZ -45 45KW Melting Furnace18KG  50KG20KGJLZ -70 70KW Melting Furnace25KG 100KG30KGJLZ -90 90KW Melting Furnace40KG120KG40KGJLZ -110 110KW Melting Furnace50KG150KG50KGJLZ -160 160KW Melting Furnace100KG250KG100KG2.Forging Molding   M.F. forging furnace is used for the heating of bars and rods larger than Φ12, the material can be steel, stainless steel, copper, brass ,aluminium and so on.  The heating can be the whole rod, end of the rod or middle part of the rod.   Application Examples:Fasteners, Hardware tools, Automobile and motorcycle accessories, Rigging, Pipe fittings, Twist drill, Atlas, Table, Mould parts, Standard parts, Handicrafts, Machinery parts, Brass lock, Lock, Rivets, Other hardware and metal accessories.    Main models and heating ability:modelsMax. Input PowerHeating ability of normal materialSteel or S.S to 1100 degreeCopper or brass to 700 degreeAluminium to 500 degreeJLZ-35 forging furnace35KW1.25 KG/min1.75 KG/min1.46 KG/minJLZ-45 forging furnace45KW1.67 KG/min2.33 KG/min1.87 KG/minJLZ-70 forging furnace70KW2.5 KG/min3.5 KG/min2.92 KG/minJLZ-90 forging furnace90KW3.33 KG/min4.67 KG/min3.75 KG/minJLZ-110 forging furnace110KW4.17 KG/min5.83 KG/min4.58 KG/minJLZ-160 forging furnace160KW5.83 KG/min-------6.67 KG/minJLZ-200 forging furnace200KW9.0 KG/min-------8.50 KG/minPackageCompany information:      Dongguan Jinlai Electromechanical Device Co.,Ltd., founded in 1996, which is engaged in R&D, production andsale of solid Induction heating machine professionally. Several senior experts of induction heating equipment gathered here, who initiate the induction heating machines with environmental protection and highly effective energy conservation, positively and diligently.   Our Services:1. Pre-sale service:Recommend the most suitable machine for customers, according to their requirements. Inquiry and consulting support. Sample testing support. View our Factory.2. In-sale service:Strictly manufacture the machine, according to relevant technical standards.Take run test, according to relevant equipment test run regulations.Strictly check up the machine, before deliveryDelivery on time.3. After-sale service:12 months warranty periodWithin one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, Jinlai shall provide replacement parts after detecting the faults.If any big quality problems occurs out of the guarantee period, Jinlai will send maintenanceTechnician to provide visiting service after checking with the customer and charge for a favorable price. Jinlai will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.FAQChina Supplies Induction Heating Power Supply   Questions and Answers:1. Which countries your products are exported to?Our products are sold all over the world and with related certifications.2.How about the warranty?All our products have one year quality warranty, during the warranty time, the spare p
