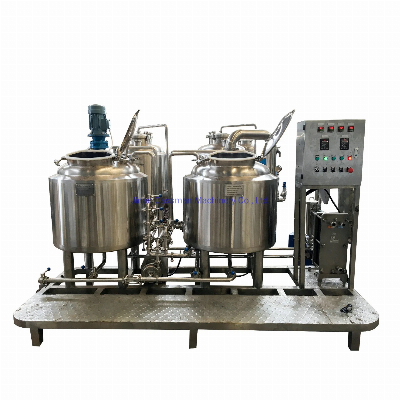

Cassman Electric Heating 200L Beer Brewing System for Brewpub

Cassman Electric Heating 200L Beer Brewing System for Brewpub1. Mill System                                                                                         Description: CE or UL listed Motor, Double roller, distance adjustable, alloy or stainelss steel 304 material.Optional: Flexible Auger.2.Brewhouse system:• Steam, electric, direct fire heated• Dished top and sloped bottom, 100% TIG welding with pure argon gas shield.• 200L Working Capacity, +35% head space• 400L Hot water tank for option• Lauter tun with milled false bottom, VFD motor, Sparging and CIP pipe. Level gauge,Side mounted grain outdoor with grain chute• Mash tun . VFD motor for option.Level gauge• Plate heat exchanger• Sanitary Centrifugal pump• Digital control panel or PID control system• SUS 304 tank, pipe, valves,  platform and integrated stairs etc.• Stringent tank leakage test by water and pressured gas.3. Fermentation tank:• 200L Working capacity, 25% head space• SUS 304 material insulated tank.• 100% TIG welding with pure argon gas.• 0.3 Mpa test pressure. 0.2 Mpa working pressure.• Dimple cooling jacket, side and cone of the tank. NPT connection.• Top relief valve(PVRV), Top dry hopping port.• Sanitary top manway.• Sample valve. Pressure valve, Co2 relief valve, DIN/TC racking arm.• 60 degree cone.carbonation stone & Level tube for choice, CIP pipe• 24V solenoid valve.Dial Thermometer. PT100 sensor.4. All other relative support system such as Steam boiler, Cooling system, Control system, Brite tank, Bottle Filling line, Canning line , Beer keg can be provided.Cassman FactoryCassman is the leading Microbrewery equipment supplier in China, our service include the brewery design, equipment manufacture, Installation at site and brewing technology transfer.We provide complete beer brewing solutions that include: malt handling system, brew house system, beer fermenting/storage system, cooling system, cleaning system, control system, package line. Established in 2010, Cassman brewing equipment has been exported to more than 20 countries, which include USA, Canada, Australia, Japan, UK, France, Germany, Denmark etc. Project ReferenceCertification /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
