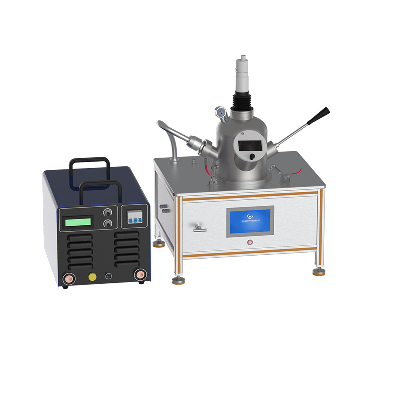

Compact Vacuum Arc Melting System Introduction is a Compact Vacuum Arc Melting Furnace with non-consumable tungsten electrode and water cooled copper crucibles. Integrated mechanical manipulator can repeatedly tilt/rotate multiple metal ingots for remelting process. It is an excellent tool for smelting metal alloys with elevated mechanical homogeneity under protective gas environment. Technical Parameter FeaturesΦ120mm front door for easy sample loading/unloadingA tinted observation window is installed on the front for instant monitoring of the entire melting process.Water cooled vacuum chamber(φ300mm × 320mmH), cold copper crucible and electrodeElectrode position (height) adjustment via hand wheel turningIntegrated mechanical manipulator made of stainless steel 1Cr13 can repeatedly tilt/rotate multiple metal ingots without breaking the vacuum Water cooled copper hearth allow smelting multiple samples without cross contamination upto 3000°CVacuum Pressure GaugePlease select the anti-corrosive capacitance diaphragm gauge or mechanical vacuum pressure gauge from option bar. Digital pressure gauge is used for vacuum chamberMechanical pressure gauge is used when continuous flow of inert gas inside the chamberPower supply Input Voltage: Single phase AC 220V+/- 15% . 50/ 60Hz(Three Phase AC 380V 50Hz is available upon request)Input Power: 6.3KW, 30A Max.Output Power DC, 56V (OVC), 10 - 190A max. adjustableOptional: larger current upto 300A is available at additional cost.Max. Temperature~ 4000°C , almost can melt all type metal ( < 10 g )Bottom-left picture is a 4.5 g tungsten melt drop Bottom-right picture is a 10g tungsten melt dropVacuum Chamber &Copper Hearth Vacuum chamber: Φ200mm×350mm, made of stainless steel with water cooling jacketWater cold copper hearth with 7 crucibles of 25mm dia.x 8 mm depth ( see the first pic on left )Solidified sample is about 20 mm half-round button in max. and sample weight is depended on material density.Customized copper hearth is available upon request ( see the second pic on left )Sample weight for each crucible can be estimated as: W (g) = 2/3 π r3 d ( d= density, g/cm3)Electrode4 mm dia. Tungsten electrode with water coolingTop hand wheel can move electrode cycle, upward and downward ( max. 30 mm) to melt seven sample in one batchWater Chiller & Gas (Optional)Water cooling is required ( not included ) for its chamber, copper mold and electrode. Please consider to use the KJ-5000 recirculating water chiller.High purity Ar gas is required ( not included ). You may use 5% H2 + 95% Ar gas to better reduce oxidationVacuum Pump (Optional)Vacuum Level is dependent on the vacuum pump used:1E-3mbar via mechanical/roughing pump (please click underline to view Roughing Pumps) 1E-5mbar via turbo pump. We strongly recommend you consider Turbo-molecular Vacuum Pump Station for high quality melting. Furnace Dimensions 21" W × 21" D × 36" H (exclude the power supply) Chamber DimensionsΦ182mm × 225mmWarrantyOne year limited warranty with lifetime supportFactoryZhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.Our main products include: tube furnace, muffle furnace, plasma cleaner, vacuum furnace, atmosphere furnace,CVD system and customized lab equipment.Welcome you come to visit us. Exhibition /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
