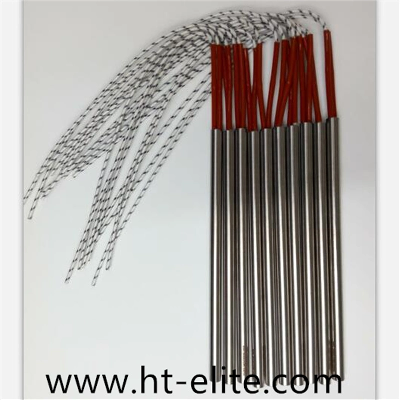

Mini Cartridge Heater Heating Elements

 Mini Cartridge Heater Heating Elements  Product Description 1. Cartridge Heater Working PrincipleElectric cartridge heater, also known as single-end tubular heater, one end can heat, another end is cold end. It is made of a metal tube put into the resistance alloy wire as the heating materials, the alloy wire is filled with good insulation high purity magnesium oxide as filler, the product has a big power, high thermal efficiency, fast heat dissipation characteristics.   2. Cartridge Heater Characteristics1. The smallest diameter could be 3 mm. 2. Unlimited length, 15 to 2000mm 3. High power density, and the highest power density could be 50W per square centimeter. 4. Long life time 5. Warranty: One year 6. Different type of wire available according to the usage environment.   3. Cartridge Heater Parameters· Welded watertight base (Tig).· Stainless steel AISI 304/316/321/ INCOLOY.· Disc ceramic insulator.· Pure magnesium oxide (UCM, Tateho).· Resistance wire: Kanthel, BGH, Nickel-chromium 80/20. Melting point 1400º C.· MGO Rod: Tateho, OTC.· High temperature wire: Fiberglass wire, Pure Nickel core wire, Telfon wire.· Conductor without connections.Heat intensityNot exceeding 30Wcm2 (advisable)PowerDepends on the dimensionEscape of current (when cold).Silicone rubber 2>. TF3>. Metal hose4>. Metal screen Braided6. Cartridge Heaters photos for reference7. How to order? Please offer these information: 1.Type of Cartridge Heater (shape, striaght or right angle)2.Diameter of Tube3.Overall length for Cartridge Heaters.4.Wattage & Voltage5.Lead type ( glass fibre / PTFE ) & lead length. 6.The lead wire length./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
