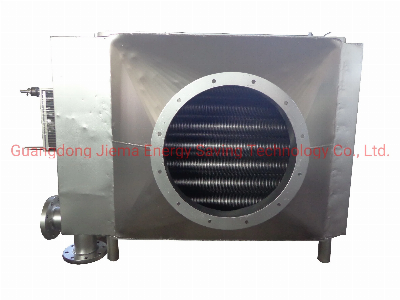

Industrial Air to Air Heat Exchanger for Waste Gas Heat Recovery

Industrial Air to air Heat Exchanger for Waste gas heat recovery  Plate-fin Air Heat ExchangerAdvanced mechanical expansion tube and arc corrugation sheet with double flanged aluminum-finned sheets are adopted in plate-fin air heat exchanger. Mechanical expansion tube makes copper tube come into close contact with aluminum-finned sheet; arc corrugation can promote turbulent flow of fluid, destruct boundary layer of air, and raise heat transfer coefficient.Advanced structural form as well as reasonably-designed water travel, tube pass and spacing between sheets provide the following features of the heat exchanger: good heat transfer performance, small air resistance, compact structure and light weight, etc.Please provide the following working parameters, we will provide you with professional design and selection Suggestions.Capacity (Kw/Kcal/h)Hot side medium Cold side medium Flow rate                               Flow rate                                                                             Inlet temperature Inlet temperature outlet temperature outlet temperature Working pressure Working pressure Allowable prssure drop Allowable prssure drop    Web:jm-heat-exchanger.en.made-in-china.com  Characters: 1.Special stainless steel fin around stainless steel tube,maximize the heat transfer efficiency and compact the size 2.High pressure and high temperature  oil,steam,water,glycol heat resource (tube side) to heat the air 3. Stainless steel or Steel fin and tube optional 4.Widely applications: Such as :petro,chemical,food,machinery, metallurgy,power generation,marine,textile,pharmacy,papermaking,centralized heating process ,congeneration, domestic heat supply,industrial waste water/gas heat recovery,for cooling ,heating,condensing,concentrate,pasteurization,waste heat recovery. Such as :gas/air waste heat recovery in steel,chemical,printing,dyeing ,grain&oil etc. process 5.CE,SGS,ISO9001 certified.Many patents.Quality guaranteed. Patents and Certifications:   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
