Hot Selling Factory Directly Supply Induction Heating Pipe Bending Machine

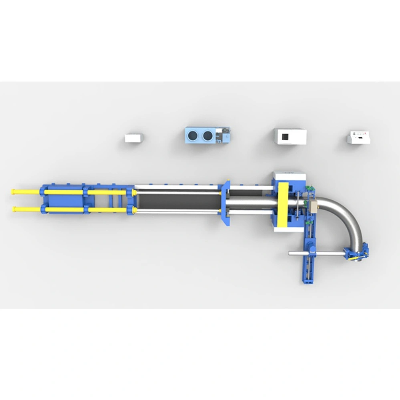

  Factory Directly Supply Induction Heating Pipe Bending Machine FactoryThe induction bending coil creates a narrow, circumferential, heated band around the material to be bent while a clamp holds the material to its specific shape on a pivoting arm to the desired radius. When the appropriate temperature is reached, the heated tube and pipe material is shaped into a bend as it is pushed forward through the induction bending coil at a consistent speed and temperature. After the material passes through the induction bending coil, and the heat induction bending portion is complete, the bent tube and pipe is cooled by forced air or water, or it may be allowed to cool naturally at ambient temperatures.InductionSizeTypeIF typeCylinder sizePLC available6"YWG-159200KWID 140 OD168NO8"YWG-219200KWID 140 OD168NO12"YWG-325250KWID180 OD219YES16"YWG-426350KWID180 OD219YES20"YWG-530400KWID180 OD219YES24"YWG-630500KWID200 OD245YES28"YWG-720600KWID200 OD245YES32"YWG-813800KWID220 OD273YES36"YWG-914800KWID250 OD299YES40"YWG-1020800KWID250 OD299YES48"YWG-10201000KWID280 OD325YES56"YWG-14201000KWID280 OD325YES60"YWG-15201000KWID280 OD325YES64"YWG-16201000KWID320 OD377YES/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
