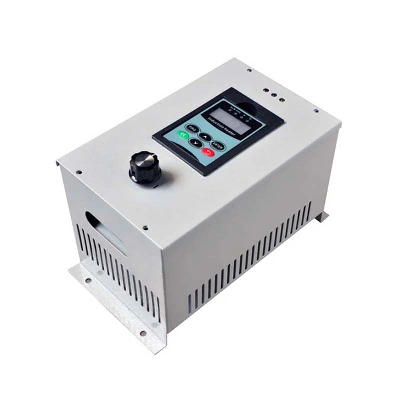

Plastic Machinery Electromagnetic Induction Controller, Foam Machine 2.5kw Electromagnetic Induction Heater

Guangdong Jiangxin Electronic Technology Co., Ltd.  Main Products:Induction HeaterInduction heating control boardInduction water heaterInduction hot blast stoveInduction heater coilInduction Steam GeneratorCabinet type induction heaterworking principleAn electromagnetic heater is a device that converts electrical energy into heat energy by means of electromagnetic induction. Electromagnetic controller will be 220 v / 380 v, 50/60 Hz alternating current (ac) by the rectifier circuit rectifier into direct current (dc), through the control circuit converts direct current (dc) into different frequency voltage, high-speed change of high-frequency electric current flows through the coil produces high-speed change of alternating magnetic field, When the alternating magnetic field lines in the magnetic field pass through the magnetically permeable metal (iron, cobalt, nickel) material, countless small eddy currents will be generated in the metal body. The metal material itself generates heat at a high speed, thereby achieving the purpose of heating the contents of the metal material barrel.Product DescriptionThe 2.5KW / 220V all-digital electromagnetic heating controller is a major improvement for Jonson Electromagnetic's 15-year-old traditional half-bridge circuit. It has carefully developed energy-saving heaters specifically for injection molding machines and small plastic machinery.The circuit adopts full digital control and dual-core half-bridge driving structure. It has the characteristics of integration, intelligence, simple and convenient installation and debugging, and flexible control.It is an ideal product for injection molding machine, energy saving transformation of small plastic machinery and equipment, and heating equipment heating.Detailed PhotosBasic performance parameters of 2.5KW electromagnetic heaterNamePerformance parameterrated powerSingle-phase 2.5KWRated input current10-11(A)Rated output current100-150(A)Rated voltage frequencyAC 220V/50HzVoltage adaptation range100V ~ 260V, constant power output at 210 ~ 260VAdapt to ambient temperature-20ºC~50ºCAdapt to environmental humidity≤95%Power adjustment range20% ~ 100% stepless adjustment(That is: adjustment between 0.5 ~ 2.5KW)Heat conversion efficiency≥95%Effective power≥98%(Can be customized according to user needs)working frequency5~40KHzMain circuit structureHalf-bridge series resonanceControl SystemDSP-based high-speed automatic phase-locking tracking control systemApplication modeOpen application platformmonitorProgrammable digital displaystart time
