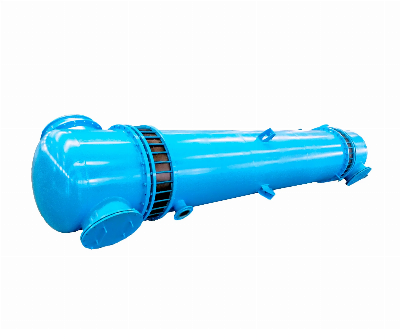

RODUCTION DESCRIPTION: Circular-block/Cylindrical block horizonal type graphite heat exchanger/condenser is an important chemical production equipment. It has a series of excellent properties: good heat transfer performance, simple structure, convenient manufacturing, low cost and corrosion resistance, etc., a wide range applicating in chemicals, fertilizers, pesticides, metallurgy, waste treatment and other industrial fields for condensing, cooling, heating, vaporation & absorbing.It is mainly used in chlor-alkali chemical, petrochemical, fluoride salt, titanium dioxide, zirconium, chloroacetic acid, chlorinated paraffin, monocrystalline silicon fluorine chemical and other chemical production industries.STRUCTURE: A cylindrical block type graphite heat exchanger/condenser is composed of one or several graphite heat exchange blocks with drilling holes, graphite end-heads, steel shells and cover plates. Each parts are sealed with PTFE / graphite gaskets. Top end fasten with long bolts and spring preload as automatic compensation mechanism for thermal expansion and contraction.If use as condensor, it should be add a gas-liquid seperator on the bottom of equipment. Installation with Vertical and Horizonal type.Each graphite heat exchange cylindrical block have drilled with two sets of non-connected holes to flowing pass two different temperature medium to achieve the purpose of heat exchange. These optimized cylindrical blocks impregnated with phenolic resin, and constitute by stacking formed the heart of the graphite heat exchangers. These graphite blocks associable between them, allow adaptability and perfect match to the need of customers.SPECIFICATIONS:Standard: HG/T 3113-2019 Or Against customized standardHeat Exchange Area: 20M2 Diameter Of Graphite Block: 500mmStandard Drilling Hole : 16/12mmInstallation: HorizonalDesigned Pressure: Process Site: 0.4Mpa; Shell/Service Site: 0.4MpaDesigned Temperature: Process Site: 165 Deg.C Max.; Shell/Service Site: 60 Deg.C Max.Test Pressure: Process Site: 0.5Mpa; Shell/Service Site: 0.5MpaMaterial of Shell & Standard: MS Q235B GB/T3274-2017Gaskets: PTFE / PTFE ENV GraphiteWorking Medium: Non-oxidizing or weakly oxidizing strong acids, alkalis, salt solutions, organic acids, most organic solvents and composite media.Designed Working Life: 6 yearsMain Shipment Dimension(Bare): ~Φ850*2160mmNet Weight: ~810kgsAPPLICATION WHERE GRAPHITE HEAT EXCHANGER USED*Acid pickling bath; *Corrosive chemistry; *Fine chemistry;*Pharmacy.FEATURES OF GRAPHITE BLOCKS☆ Excellent resistance to corrosive fluids - Suiltable for non-oxidizing or weakly oxidizing strong acids, alkalis, salt solutions, organic acids, most organic solvents and composite media (except strong alkalies, it can corrosion the resin which impregnated in blocks and cause the block leakage).☆ High thermal conductivity - The thermal Conductivity of graphite is higher than most metals, 2 times greater than carbon steel, 5 times greater than stainless steel.☆ Electrical conductivity that is secured for use in a explosion proof area.☆ Low linear dilatation coefficient,☆ Resistant to temperatures up to 170°C.☆ Surface is not easy to scale and no pollution.☆ Easy machining.☆ Low density with light weight.PRODUCT ADVANTAGES ☆ High heat exchange efficiency☆ Strong corrosion resistance☆ Compact structure with greater available floor space☆ Large heat exchange surface area possible by block stacking☆ Adapted to high flow rates☆ Easy installation and maintenance☆ Customized Design - Design and manufacture according to the condition and requirement of customer/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
