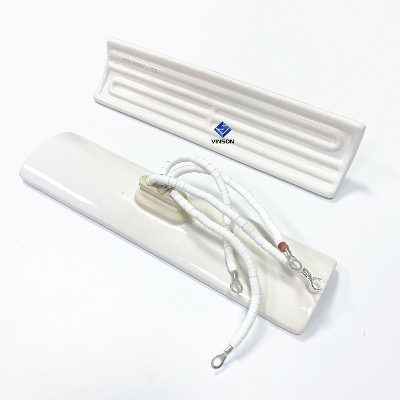

110 Volt Ceramic Heater 220V 600W Far Infrared IR Ceramic Heating Element

Ceramic infrared heater is made out of ceramics. 1. Radioactive properties: a maximum monochromatic radiation components reached 0.9, the normal total radiation rate is greater than 0.83.2. Thermal response time: from room normal temperature to a constant value of the radiant panel surface temperatures less than 20 minutes.3. Degeneration of hot and cold resistance: five alternating hot and cold test of no peeling, no cracking. Radiating temperature inhomogeneity≤ 15%Power toleranceThe rated working voltage ≤ 5%Cold insulation resistance500V megger> 2mΩThermal insulation resistance500V megger> 0.5mΩUsing life> 3000 hoursFeatures1.Extremely high temperatures, limited largely by the maximum temperature of the emitter2.Fast response time, on the order of 1-2 seconds Temperature gradients, especially on material webs with high heat input3.Focused heated area relative to conductive and convective heating methods4.Non-contact, thereby not disturbing the product as conductive or convective heating methods doApplications* PET perform heating in stretch blow molding machines* Printing Ink drying in offset machines* Screen-printing curing on T-shirts and textiles* Powder coating curing* Rubber coated drying* Sterilizing/mirror coating drying in glass industries* Paint baking* Paper coating drying* All type of lamination* Preheating prior to embossingSquare/rectangle IR Ceramic heater( hollow type & flat type) Model Size VoltageWattageMax.TemperatureYS-10160x60 mm120-440V100w-300w800°CYS-102122X122 mm120-440V150w-1000w800°CYS-103245x60 mm120-440V300w-1000w800°CYS-104245x80 mm120-440V300w-1000w800°CYS-105122x60mm120-440V200-600w800°CYS-106285x60mm120-440V300w-1000w800°CYS-107245x110mm120-440V300w-1000w800°C/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
