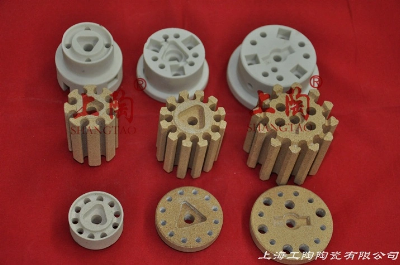

Ceramic Bobbin Heating Element

Physical propertiesGross Densityg/cm32.3-2.6Average Linear Expansion(20-1000°C)10-6/k-16-7.6Specific Heat CapacityKJ/Kg900-1200Heat Conductivity W/MK1.8-3Soft Temp. °C1400Maximum Application Temp. °C1350Corrosion Resistance Against Acid% 99.5Chemical content of each material is as below:Power and surface load of heater tubeSurface load,that is,the electric power value taking on on unit superficial area of heating element.The higher surface use load strength of material is,the shorter life of material is,but the smaller the wastage of material is.So heating load strength of element should be chosen reasonably,making the heating element have general effect of high thermal efficiency,long life,material-save.Calculating step is as below:1.Basic data for calculationThe highest use temperature t (C)Heating electric power P (W)Working voltage of element U (V)Length of heating zone L(m)2.The electrothermal alloy brand in use is confirmed according to basic data,combining with working condition of heating element.3.Based on the confirmed electrothermal alloy brand in use,referring to known data,check attached table and get coefficient of correction Ct of resistance temperature.4.Work out total resistance of material=U2 Ct/P5.Work out resistance of per meter material Rm=R/L,combine the property of electrothermal alloy material and estimately work out the diameter of material D.Then work out total area FO of heating element.6.The surface load of material ω is gained by ω=P/FO.If the load of surface is too large,big diameter of wire should be chosen.Currently because of limitation of heating material, the surface load of heater tube made in China should not exceed 2.0W/cm2.It can be improved properly in the condition of low temperature.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
