Tubular Heater Flexible Manifold Heater Heating Elements

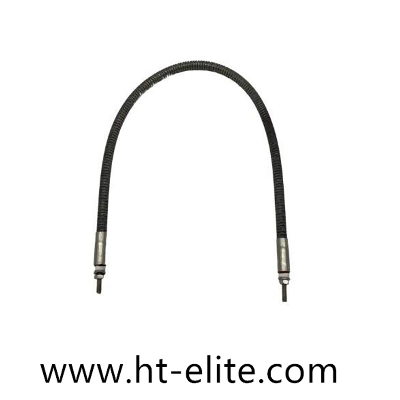

Product Description Industrial Flexible Manifold Tubular Heater Flexible Heater Heating Elements Electric Heaters1. Flexible Manifold Heater IntroductionFlexible Manifold Heater are custom designed in a various shapes to as client's requirements for direct immersion in liquids such as water, oils, solvents and process solutions, molten materials as well as air and gases.Tubular heaters are produced using Incoloy, stainless steel or Copper sheath materials and also there is huge variety of selection of termination styles available. Insulation of Magnesium offers greater heat transfer.Tubular heaters can be used in any application. Straight tubular can be inserted in machined groves for conductive heat transfer and formed Tubular provides consistent heat in any type of special application. Sheath/Casing materialsSUS304/ SUS321/ SUS316/ SUS316L/ SUS310S/ Incoloy800/ Incoloy840/ Copper/ TitaniumTerminal StylesPlain Pins/ Flag Terminals/ Spade Terminal/ Screw Terminal/ Special TerminalShapeU/ Hairpin/ W/ Z/ Straight/ Spiral/ Circular(with extension)/ Double Loop/ Bent HairpinEnd capCeramic end (standard)/ Cement/ Epoxy/ RTV seal   Construction TypeSwaged / High Watt Density - up to 1400°F (760°C)Not Swaged / Low Watt Density - up to 1200°F (650°C)OtherSheath materialstainless steelLeakage current < 0.5 ma at 253 v acSheath temperature of heating elementmax. 700 °cStandard voltage230 vHigh voltage test1000 v acInsulation resistanceinsulation resistance - ≥5 mω at 500 v dc Wattage tolerance ±10%Length tolerance ± 1.5%Groove dimensionsfor 8 mm: 7.80 (±0.05) mm x 8.00 (±0.10) mmfor 8.5 mm: 8.30 (±0.05) mm x 8.50 (±0.10) mmProduct Parameters 2. Flexible Manifold Heater Structure3. Flexible Manifold Heater Standard SizesTechnical data and tolerancesWattage+ 5% - 10%Resistance+ 10% - 5%Dielectric strength1500 VInsulation (cold 1000 V DC)> 10 MΩLeakage current (cold)< 0,5 mAMaximum working temperature750 °CLength tolerance± 2% (min. ± 5 mm)Depending on the number of bends the hotflex length can increaseType HotflexL min [mm]L max [mm]Tube section max [mm]Min bending radius internalMax. sheath surface load [W/cm²]Max. wattage [W] at 230 VØ 6.53001500246.5102190Ø 8.030016001010155200Ø 8.5300150010101552004. Flexible Manifold Heater Parameter1. Outer pipe material: SUS304 -- 9.5 * 0.6T2. Filler: high temperature magnesia powder3. Heating wire: high quality high temperature resistance wire4. Guide rod: m3 stainless steel and screw, flat and spring pad5. Insulation barrier: 95 porcelain (heat treatment by soaking silicone oil)6. Sealer: silicone oil (kf-99)7. Unheated length: about 30 mm at both ends8. Bending radius: r9mm   Size: D8mm/6mm/6.6mm/8.5mm/10mm Square:6x6mm 8x8mmLength300-1550mm400-2100mmMax Current12A15ANominal VoltageLess than 230VLess than 400VWattage+-10%+-10%Dielectric Strength1.5HV1.5HVInsulation MΩMore than 5 MΩMore than 5 MΩLeakage CurrentLess than 0.5 mALess than 0.5 mAMinimum Unheated30mm35mmTerminal PinsM3 x .50mm / plain postM4 x .70mm.Detailed Photos Packaging & Shipping /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
