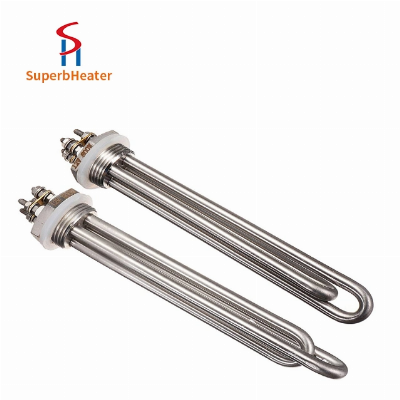

Industrial Immersion Flanged Heater Element for Pool Hot Water Tank

Product DescriptionElectric Industrial Immersion Flanged Heater/ Heating Element for Pool Hot Water TankFlanged heaters are commonly used in many chemical, petroleum and water based applications.JAYE flanged heaters allow the flexibility of using many different alloys to help resist corrosion and maintain life longevity of the flanged heating element Steel flanges are typically used for lubricant oils, heavy and light oils, waxes as well as mildly corrosive liquids and low flow gas heating.Flange immersion heaters are constructed of hairpin bent tubular heater elements brazed or welded into ANSI standard flanges or plate flanges of various shapes and sizes. ANSI flange heaters are typically used for large volume, high power and/or higher pressure applications. Plate flange heaters are typically custom designed for use in smaller pieces of equipment such as boilers and chillers.There are two connections, one thread connection, commonly used specifications size G1 / 2--2 inch, the second is the flange connection. Also known as the flat flange connection . Common specifications size DN50mm - DN300mm, flange electric tube flange commonly used materials are brass, stainless steel, 10 steel, pipe material commonly used 10 steel, stainless steel, copper. Common specifications, 1.5KW, 3KW, 6KW, 9KW , 12KW, 15KW, 30KW to 500kw, etc. Used for electric water boilers, electric boilers, solar energy systems, solar water tanks, chemical pools, baths, swimming pools and other places to be heated.Heating element features 1.ANSI flanges 3" to 14" standard; up to 40" available, power ratings from 1kW to 1 MW+ and custom fit to application demands2.Standard 150lb flanges; 300lb & 600lb readily available, ensures proper pressure rating for your needs3.Copper, steel, SS and Incoloy® and other heater sheaths available, custom tailored to application requirements4.Element Spacers & Supports, maximizes heater life and application performance5.Recompacted element bends provide longer life by ensuring insulation integrityHeating Element Product applicationsProcess Air & Gas Heating                                        Process Air & Gas HeatingProcess Chemical Reactors                                         Process Chemical ReactorsBoilers and Water Heating                                          Boilers and Water HeatingRinse Tank Heating                                                    Rinse Tank HeatingParts Cleaning Solutions                                            Parts Cleaning SolutionsLube Oil & Fuel Oil Heating                                      Lube Oil & Fuel Oil HeatingProduct ParametersProduct Photo&ApplicationOrder Guide1.wattage and voltage2.the diameter and heated length3.the heating medium, Water or Oil heating 4.maximum temperature and how long required to reach your temperatureCompany Profile   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
