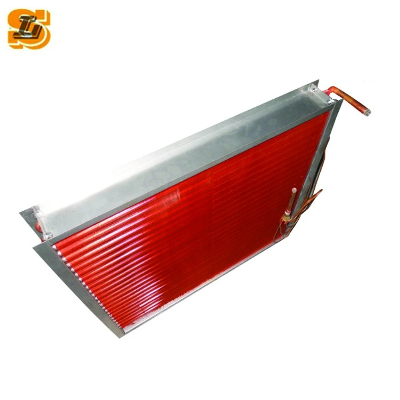

Tube Fin Heat Exchangers 1. Heat exchangers. 2. Can be customerized 3. Work Pressure: 0.2~3.1MPa 4. Fin space: 1.2~3.5mm 5. Tube Diameter: 7, 7.94, 9.52, 12.7, 16mm Fin Type: 1. Copper pipe type: Inner grooved pipe or bare pipe 2. Foil type: Hydrophilic fin, e-coating, bare fin 3. Fin type: Flat fin, sine wave with blade fin, smooth sine wave fin, window fin, Some description about our chiller condenser: Fin plate: Optical aluminum foil, hydrophilic aluminum foil, black hydrophilic Aluminum foil and copper foil; Heat exchange tube: Purple copper pipe with internal screws, purple copper-based optical tube and copper-nickel alloy tube; Connector pipe: Purple copper pipe and seamless steel pipe; Connection pipe: Purple copper pipe, brass pipe and seamless steel pipe; Sheet metal: Aluminum plate, galvanized steel plate, stainless steel plate and Embossed aluminum plate; Special treatment: Spraying and coating, anodic oxidation and electrophor Feature: 1) High performance 2) The subcooler integrated with the condenser further cools the liquid Refrigerant, resulting in increased refrigerant enthalpy and improved Evaporator cooling performance 3) Thinner tubes and fins improve the heat exchange rate 4) Smaller header tank and lower side plate height increase the effective Heat exchange area of the core part that exchanges heat, without Increasing the installation space 5) Small size, light weight and easy installation 6) The tube's zinc diffusion layer improves corrosion resistance, resulting in reduced Tube plate thickness Choose us: 1. Design term: We have professional design team. 2. Professional factory: We are manufacturer, specializing in manufacturing heat Exchangers for over 15 years, competitive price with good quality. 3. Large productivity: 60 tons per month. 4. Sample: We can give out sample within 10 days, but the shipment charge usually Paid by buyers' side 5. Rapid response to your needs: We will reply within 24 hours after receiving you letter. If you have urgent thing, welcome to call us. 6. The Most Efficient Service, Best Quality and Excellent Reputation Fin PatternCopper Tube O. D. (mm)Row Space(mm)Hole Space(mm)Fin Thickness(mm) Fin Space(mm)Flat finSine wave with blade finSmooth sine wave finWindow finSesamoid finA712.7210.105//1.31.3/B713.217.60.105//1.31.3/C712.720.40.105//1.3~1.81.3~1.8/D7.9415.8825.40.1051.8~3.01.8~3.01.8~3.01.8~3.0/E9.522225.40.105~0.151.6~3.21.6~3.21.6~3.21.6~3.2/F9.522225.40.18~0.43.5~6.35////G9.5221.65250.105~0.181.6~3.21.6~3.21.6~3.21.6~3.2/H9.5221.65250.15~0.243.2~6.353.2~6.353.2~6.35//I12.7527.531.750.115~0.151.5~3.51.5~3.51.5~3.51.5~3.51.6~3.2J15.883338.10.115~0.151.5~4.01.5~4.01.5~4.0//K15.8834.64400.115~0.15/2.6~3.52.6~3.5///* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
