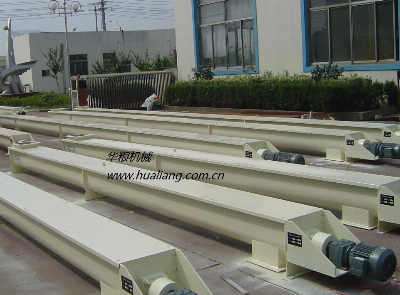

U Shape Screw Conveyor/Auger/Spiral Conveyor Non- Standard Customization

Screw Conveyor is widely used in grain oil ,feed mill , chemical industry, building material, metallurgy, mining, plastics, medicine etc It can be design as U-shape or tube type to convey granular or powder material. The conveyor can be screw with shaft or shaftless, the material is carbon steel or stainless steel Auger flight of LSS serial screw conveyor has three types : whole board -type,draper-type and blade-type.(1)Whole board -type is suitable used for granular or power material.(2)Draper-type is suitable used for conveyingcloggy material.(3)Blade-type is suitable used for conveying high viscosityand may compression material,in the conveying process can at the same time complete working procedure of stiring ,mixing etc.Costumers may choose shape of auger flight according material performance .Characteristic:(1)LSS serial screw conveyor,the casing complete adopt mould pressing. bearings complete use sealed bearing with spherical outside surface.(2)Size of inlet /outlet and discharge mounting can be made according user's need.Rotation direction of auger flight has either type of  left-handed turning or right-handed turning. (3)It is connected with core axis between every section of screw shafts. Motor reducer connected with the conveyor drive shaft by flexibile shaft coupling.It is convenient to install,dismantle,maintain.Main Technical Parameters. all kinds of screw conveyors photos water cooled screw conveyor screw conveyor with hopper shaftless screw conveyor mutiple spindle screw conveyor                                                        Project Case  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
