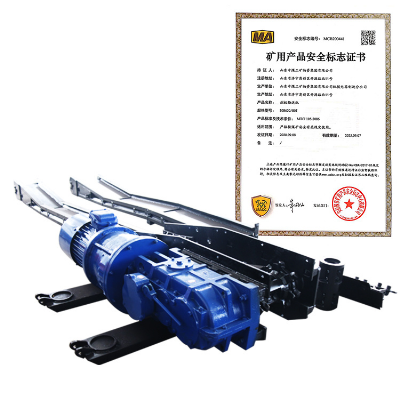

Sgb280/11 Coal Mine Double Strand Transport Scraper Conveyor

Introduction of SGB280/11 Coal Mine Double Strand Transport Scraper ConveyorSGD-320/17B Coal Mine Transport Scraper Conveyor is designed to mainly for horizontal transportation in the underground coal mining industry and metallurgical mine. The SGB and SGD series scraper conveyor is applicable to be used on the underground mining face of small and medium-size coal mine for transporting coal.  Operating Principle of SGB280/11 Coal Mine Double Strand Transport Scraper ConveyorSGD-320/17B Coal Mine Transport Scraper Conveyor for materials horizontally delivery, the pressure which comes from chains in conveying direction to the materials and the action which comes from the materials themselves cause internal friction. This friction ensures the stable situation between material layers, and it can overcome external frictional resistance which causes by moving materials in the groove and makes materials transport as whole fluid.  Parameter of SGB280/11 Coal Mine Double Strand Transport Scraper ConveyorModelSGB420/22SGB420/30SGB420/40XSGB620/40SGB620/55)SGB620/80Delivery Capacity  (t/h)6080100150150150Standard length(m)80100100100100160Chain speed(m/s)0.880.880.860.860.860.86Electric motorsModel numberJDSB-22JDSB30JDSB40DSB40DSB55DSB40 Power(kW)22304040552*40 Voltage(V)220/380380/660380/660380/660380/660380/660Scraper chainFormSide double-strandedSide double-strandedSide double-strandedSide double-strandedSide double-strandedSide double-stranded Chain size(mm)14*5014×5018×6418×6418×6418×64 Breaking load(KN)≥250≥250320≥320≥320≥320Middle Flute size          (L x W x H)1200×420×1501200×420×1501200×420×1801500×620×1801500×620×1801500×620×180Total weight(t)8.510.61617.817.928.6Pictures of SGB280/11 Coal Mine Double Strand Transport Scraper Conveyor      /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
