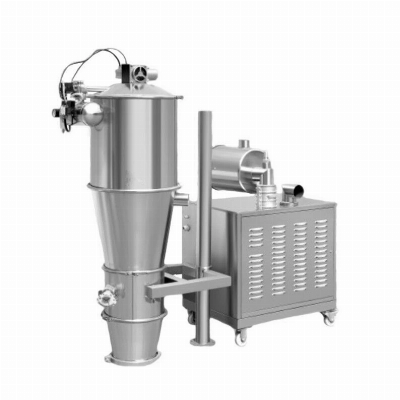

Bulk Material Powder Suction Feeder Pneumatic Vacuum Conveyor

  Product DescriptionRX Pneumatic Vacuum Conveyor are divided into six standard types: RX-2, RX-3, RX-7, RX-14, RX-33, and RX-56. Different models of suction machines are selected based on different conveying distances, conveying volumes, and material densities, and detailed selection is made according to the table.This vacuum automatic feeder conveyor is made of 304/316L material with an inner surface of 0.6 μ Mirror treatment. The standard model is intermittent conveying, and the numbers in the specifications represent the suction volume each time. After each suction reaches the rated volume, open the bottom flap valve, discharge the material, close the valve, and start the suction cycle again. Product ParametersModelParameter     QXL-200QXL-300QXL-400Valume(L)133868Power(W)200200200Compressed air consumption/pressure(L/min)/MPa50/0.680/0.6100/0.6Vacuum pumping interfaceQuick installation1.5inchQuick installation2.5inchQuick installation3.5inchFeeding interfaceQuick installation1.5inchQuick installation2.5inchQuick installation3.5inchblow back interfaceQuick installation1inchQuick installation1inchQuick installation1inchProduction capacityKg/h50-900300-2500600-3500Weight(Kg)7296125Overall dimensions(mm)D×Hφ350×1100φ450×1300φ480×1400Main Structures    Product Features1. Closed transportation, no dust leakage, no cross contamination;2. Comply with GMP standards, meet CIP requirements, and provide sterile products;3. Modular design, eliminating dead corners, quick and convenient disassembly and cleaning;4. Effectively solve the layering phenomenon of powder particles;5. Effectively eliminate material static electricity, without causing pollution to the surrounding environment;6. Automatic control, simple and convenient operation;7. No heat generated during work, safe and explosion-proof;8. No vibration, low noise, high performance, energy-saving, and low operation and maintenance costs.  In-Service  Advantages of Vacuum conveyor 1. Closed transportation, no dust leakage, no cross contamination;2. Comply with GMP standards, meet CIP requirements, and provide sterile products;3. Modular design, eliminating dead corners, quick and convenient disassembly and cleaning;4. Effectively solve the layering phenomenon of powder particles;5. Effectively eliminate material static electricity, without causing pollution to the surrounding environment;6. Automatic control, simple and convenient operation;7. No heat generated during work, safe and explosion-proof;8. No vibration, low noise, high performance, energy-saving, and low operation and maintenance costs.Application Customer Reference/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
