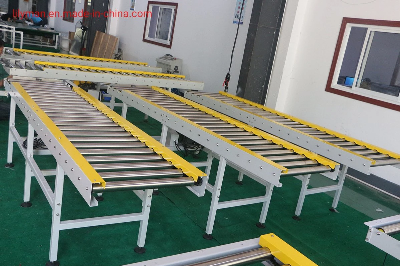

Supply China Multifunctional Roller Conveyor for Goods Delivery

Roller conveyor is suitable for the bottom is a flat object transport, mainly by the transmission roller, rack, bracket, drive part and other parts. With a large transport volume, fast speed, running light, can achieve multi-species common line diversion characteristics.   Structural form: from the driving form is divided into power, no power, electric rollers, etc. , according to the layout form is divided into horizontal transport, tilt transport and turn transport.   Dimension specifications: the width of the drum conveyor specified by the customer, can be made according to customer demand, the turning line standard turning radius of 300, 600, 900, 1200mm, etc., can also be used according to customer needs of other special specifications. The straight rollers are 38, 50, 60, 76, 89mm and so on. The taper of the turning roller is designed according to the weight, shape, line speed, etc. of the conveying object.Rack material: carbon steel spray molding, stainless steel, aluminum profiles.Power mode: gear motor drive, electric roller drive and other forms.Transmission mode: single sprocket, double sprocket, O-belt, flat friction belt, synchronization belt, etc.Speed adjustment mode: variable frequency speed, no stage variable speed, etc.Transmission speed: generally 10 to 30M/min, but also according to user needs to use variable frequency speed continuous operation.Equipment features: easy to connect between roller conveyors filtration, can be used with multiple roller lines and other conveying equipment or special aircraft to form a complex logistics delivery system and shunt flow system, to complete a variety of process needs. Stacking rollers can be used to achieve the stacking of materials. The drum conveyor structure is simple, the reliability is high, the use of maintenance is convenient, the power drum line considers the chain tensile strength, the longest single line length generally does not exceed 10 meters.   Application scope: widely used in electronic appliances, home appliances cookware, plumbing ware, power tools, lamp stationery, food toys, plastic products, instrumentation and other enterprises product assembly, packaging, testing, transportation  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
