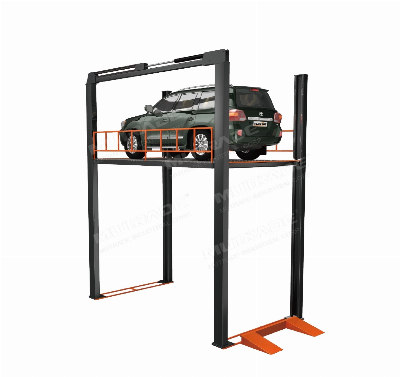

Customzied Floor to Floor Lift Car Lifting Platform

Product DescriptionVRC (Vertical Reciprocating Conveyor) is a transportation conveyor moving car from one floor to another; it is a highly customized product, which could be customized according to customers' different requirements from lifting height, lifting capacity to platform size! -FP-VRC is a kind of car or goods lift, and industry use vertical table lift -Self-standing and self-support structure -Hydraulic cylinder + steel chains drive system -High precision and stable hydraulic drive system -Automatic shut-off if operator releases the button switch -Double chain design for higher safety -High density chains with longer service lift -Remote control is optional -Top quality diamond steel plate -Hydraulic overloading protection available Product SpecificationModel S-VRCLifting capacity2,000-10,000 kg*customizedLifting height3,000-15,000mm*customizedplatform width2000mm-6000mm*customizedPlatform length2000mm-5000mm*customizedPlatform materialDiamond steel sheet (standard) / 4mm Aluminum steel sheet (optional)No. of levelaccording to your requirementDrive modeHydraulic(cylinder with double steel chains)Operationbutton switch (standard) / remote controller (optional)Power pack4 kw hydraulic power pumpLifting speed4m/minSafety devicesMechanical anti-falling lockFinishingPaint sprayColoraccording to your requirementSafety Features1. Double Chain -High density chains with longer service life 2. High precision -hydraulic drive system Limit switch -To stop the power pack pumping when the platform reach the floors 3. Stable -145mm thickness platform 4. 900mm high safety rail ProjectsQ&A1. Is this product can be used indoor or outdoor? FP-VRC can be installed both indoor and outdoor as long as the site dimensions are enough. 2. What is the surface finishing for this product? It's paint spray as standard treatment, and optional aluminum steel sheet can be covered above for better water-proof and looking. 3. What is the power requirement? Is single phase acceptable? Generally speaking, a 3-phase power supply is a must for our 4Kw motor. If the usage frequency is low (less than one movement per hour), a single phase power supply can be used, otherwise it may lead to motor burnt out. 4. Can this product still operate if electricity failure happens? Without electricity the FP-VRC cannot work, so a back-up generator may be needed if electricity failure happens often in your city. 5. What is the warranty? It's five years for main structure and one year for moving parts. 6. What is the production time? It's 30 days after prepayment and final drawing confirmed. 7. What is the shipping size? Is LCL acceptable, or it must be FCL? As FP-VRC is a fully customized product, the shipping size depends on the specifications you need. As there are some electrical parts and hydraulic parts, and the packages for components are in different shapes, LCL cannot be used. 20 feet or 40 feet container is necessary as per the lifting height. Our company Qingdao Mutrade Co., Ltd. is one of the earliest professional mechanical parking solution providers in China. We are committed to provide the most suitable and cost effective parking solutions to our customers all over the world. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
