Nice Quality Bearing Housing for Sale 89-3.0mm

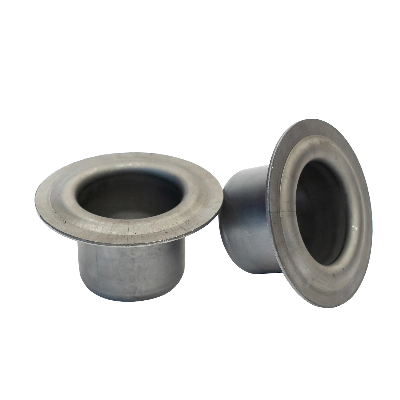

Nice Quality Bearing Housing for Sale 89-3.0mm  Product Description Product Name Steel Conveyor Idler Roller Steel Bearing Housing Material Of Stamping Parts SPCC/SPHC/SPHE Material Of Seal Nylon6 / POM Standard DIN, GB, ISO, JIS ,CEMA Outer Diameter Of BearingHousing  50mm,60mm,63.5mm,76mm,89mm,108mm,114mm,127mm,133mm,140mm,152mm,165mm,178mm,194mm,219mm Bearing Size  6203,6204,6205,6305,6306,6307,6308,6309,6310,6312 Thickness  1.7mm,2.0mm,2.5mm,3.0mm,3.5mm,4.0mm,5.0mm,6.0mm Application  Conveyor Roller /Idler  Conveyor idler roller bearing housing and labyrinth seal bearing / Conveyor ROLLER bearing housing:Stamping bearing housing and its supporting seals, relying on the advantages of strong molds, the selection of high-quality materials, stamping housings with high precision, good gloss, no tensile scars and burrs, etc., is the preferred accessory for roller manufacturers. The variety of production is complete.The roller bearing seat is composed of a seat body and a bearing mounted in the seat body, a labyrinth inner and outer seal ring, and an outer ring and a large end face of the inner seal ring have an annular waterproof and dustproof cover at the corresponding end. The inner and outer seals have a labyrinth gap at the shroud.Since the protective cover and the dust cover in the original structure are omitted, the structure is simple, the parts are reduced, the depth of the seat body is reduced, the material is saved, and the manufacturing cost is greatly reduced. At the same time, by extending the gap and length of the labyrinth, the sealing effect is improved, and the service life of the roller can be extended. The good sealing of the roller bearing housing requires strict quality control of the components, ensuring the structural and sealing properties of the components, and the roller bearing housing has a good sealing performance. A good roller seal will also bring you better benefits. Our main varieties are DT-II type, TK type, TR type, TD-75 type and other types of roller bearing housings and matching seals. Main Feature of conveyor idler roller bearing housing and labyrinth seal bearing:1) Solid design, suitable for heavy lifting.2) The bearing housing and steel tube are assembled and welded with a concentric automatic.3) Cutting of the steel tube and bearing is performed with the use of a digital auto device/machine/equipment..4) The bearing's end is constructed to ensure that the roller shaft and bearing can be firmly connected.5) Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.6) Roller and supporting components / materials are manufactured to DIN/ AFNOR/ FEM/ ASTM/ CEMA standard.7) The casing is manufactured with highly composite, anti corrosive alloy.8) The roller is lubricated and free from maintenance.9) Woring life expectancy is up to 30,000 hours or more, depending on usage.10)Vacuum sealed which has withstood anti water, salt, snuff, sandstone and dust proof experimentsSize and dimension of labyrinth seal bearing/bearing housing set : typeDiameter56606376891021081141271331401521591651761942192452656202√ √√√√√√√           6203√√√√√√√√√          6204√√√√√√√√√√√        6205√√√√√√√√√√√√√      6206   √√√√√√√√√√√√√√  6207    √√√√√√√√√√√√√  6305   √√√√√√√√√√√√√√  6306    √√√√√√√√√√√√√  6307     √√√√√√√√√√√√  6308      √√√√√√√√√√√  6309        √√√√√√√√√√ 6310         √√√√√√√√√√6311            √√√√√√√6312              √√√√√  PICTURES:Customer visiting and the exhibitionsCertificatesCompany introduction1.)Dezhou Yilun conveying Machinery Co.,Ltd was founded in 2005.    2.)It's registered capital is 11.68million CNY and It is private joint-stock enterprise. Our main products are  cnoveyor roller,idler,frame, pulley,belt and belt conveyor system for TD75 ,DTII,DTIIA,CEMA ects.3.)we has large lathes, numerical control, double pressing machine, double welding machine, double boring  lathe, milling machine, sawing machine and so on. The products have gained various patents. We can produce more than one thousand rollers and ten pulleys per day.4.)We have the professionalQC dept. to keep the good quality before the  goods sent out.     The products are sold to Middle East,Africa ,Australia,Europe,Southeast Asia,Russia and some other countries  and regions.       We will Strengthen the inner management and improve our products' quality constantly.     We will offer the best products for customers from the beginning to the end.7.FAQ1.Q: How is your Payment Term? A: T/T or L/C. Another payment term we can also discuss. 2.Q: Can you customize it? A: We support customization according to your request. 3.Q: What's the MOQ? A: 100 sets. 4.Q: What's the production capacity of your bearing housing? A:300000sets/month.5.Q: What's your guarantee time?A:one year.6. Q: How does your factory of regarding quality control?A: To make sure customer buy good quality material and service from us. Before customer place order, we will send drawing to customer for approval. Be
