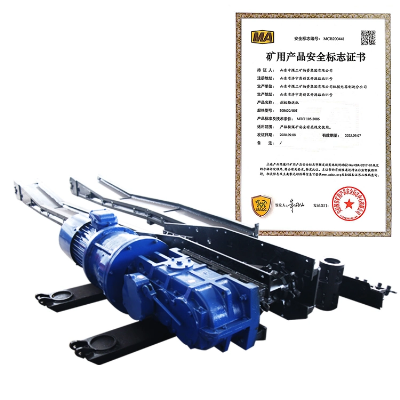

Scraper Conveyor Chain Conveyor for Underground Coal Mining Industry

Introduction of Scraper Conveyor Chain Conveyor For Underground Coal Mining IndustryCoal Mining Scraper Conveyor, Chain Conveyor For Coal Mining, Coal scraper conveyor applys to slow gently inclined thin coal seam working face conveyor of coal. Mining height is broken floor to 0.6 m, dip angle of coal seam is not more than 25 degrees. It is more suitable for hard coal, large blocks or more inner dirt band conveyor coal.The Coal scraper conveyor is designed to mainly for horizontal transportation in the underground coal mining industry and metallurgical mine. The SGB and SGD series scraper conveyor is applicable to be used on the underground mining face of small and medium-size coal mine for transporting coal. Coal scraper conveyor apply to slow gently inclined thin coal seam working face conveyor of coal. Mining height are broken floor to 0.6 m, dip angle of coal seam is not more than 25 degrees is more suitable for hard coal, large blocks or more inner dirt band conveyor coal.  Parameter of Scraper Conveyor Chain Conveyor For Underground Coal Mining Industry   ModelSGB420/22SGB420/30SGB420/40XSGB620/40SGB620/55)SGB620/80Delivery Capacity  (t/h)6080100150150150Standard length(m)80100100100100160Chain speed(m/s)0.880.880.860.860.860.86Electric motorsModel numberJDSB-22JDSB30JDSB40DSB40DSB55DSB40Power(kW)22304040552*40Voltage(V)220/380380/660380/660380/660380/660380/660Scraper chainFormSide double-strandedSide double-strandedSide double-strandedSide double-strandedSide double-strandedSide double-strandedChain size(mm)14*5014×5018×6418×6418×6418×64Breaking load(KN)≥250≥250320≥320≥320≥320Middle Flute size          (L x W x H)1200×420×1501200×420×1501200×420×1801500×620×1801500×620×1801500×620×180Total weight(t)8.510.61617.817.928.6Pictures of Scraper Conveyor Chain Conveyor For Underground Coal Mining Industry    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
