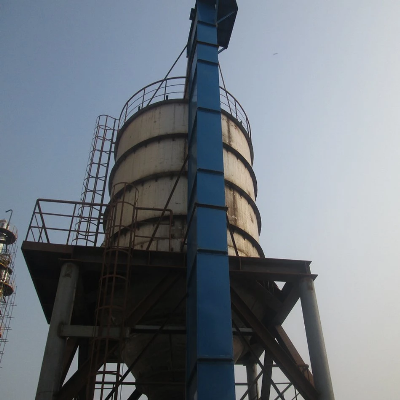

Mining Machine Silo Conveyer Bucket Elevator

Henan Yuanben Intelligent Technology Co., Ltd. (hereinafter referred to as Yuanben) is a specialized manufacturer that focuses on designing and manufacturing intelligent vibrating screening equipment. The company is committed to the processing, production, research& development and design of new intelligent vibrating screen. Yuanben is located in the national center city, Zhengzhou, it owns more than 20 technical engineers, and cooperates deeply all along with Henan Pingyuan Mining Machinery Co., Ltd. which has years of dedicated production experience, in addition, Yuanben has its own processing research and development base. ''Build industry with wisdom, create value with wisdom'', under the promotion of "Internet+" concept, Yuanben will deeply integrate ''intelligence + digitalization'' to build an intelligent workshop and realize the intelligence of overall process. While strengthening its own equipment automation intelligence, driving the transformation and upgrading of screening industry, the industry intelligent development should be also jointly promoted.Get a price at once!Product DescriptionTHG/TDG High Efficient Bucket Elevator is the upgraded from TH/TD bucket elevator. Bucket elevator consists of sprocket/drum, chain/belt, driven device, head section, middle casing and tail section etc. High Efficient Bucket Elevator can be widely used in several industries such as mining, mineral, chemical, agriculture, power, food and other industries etc.Detailed PhotosGet a price at once!Product Parameters TDG Belt Bucket Elevator(with Sh bucket)Technical Parameters TableMain Technical Parameters TDGTDGTDGTDGTDGTDGTDGTDGTDGTDGTDG160200250315400500630800100012501600Capacity Q(m³/h)3245721011582203484927881.221541Bucket  Volume /L2.6471016254064102161255Pitch of Buckets /mm260300325360420460520580650720820Weight of  traction belt&bucket per meter(kg/m)2221.53333.242.262.378.53106145155.5223  Running Speed     v/(m/s)1.21.21.341.341.51.51.681.651.861.861.836Lifting height max/m8080808080808080808080      Note:the capacity in the table is calculated according to 75% of the fill factor.  TDG Belt Bucket Elevator(with Zh bucket)Technical Parameters TableMain Technical Parameters TDGTDGTDGTDGTDGTDGTDGTDGTDGTDGTDG160200250315400500630800100012501600Capacity Q(m³/h)243151741181672533615718161112Bucket  Volume /L1.92.94.67.41219294774117184Pitch of Buckets /mm260300325360420460520580650720820Weight of  traction belt&bucket per meter(kg/m)2221.53333.242.262.378.53106145155.5223  Running Speed     v/(m/s)1.21.21.341.341.51.51.681.651.861.861.836Lifting height max/m8080808080808080808080      Note:the capacity in the table is calculated according to 75% of the fill factor.  THG Belt Bucket Elevator(with Sh bucket)Technical Parameters TableMain Technical Parameters THGTHGTHGTHGTHGTHGTHGTHGTHGTHGTHG160200250315400500630800100012501600Capacity Q(m³/h)30 50 70 100 160 210 350 475 715 1120 1550 Bucket  Volume /L2.6 4.1 6.5 10 16 25 40 64 102 161 255 Pitch of Buckets /mm270 270 336 378 420 480 546 630 756 756 882 weight of traction chain & bucket  per meter(kg/m) 31 31.8533.443.25 60.9 79.6 88.66 107 150 187.6 233   Running Speed     v/(m/s) 0.930.93 1.04 1.04 1.17 1.17 1.32 1.31 1.47 1.47 1.47 Lifting height max/m60 60 60 60 60 60 60 55 55 40 40       1. Filling factor ψ=1;      2. Bucket volume=Volume of full water                                               3. Maximum lifting height = axis distance of bucket elevator   THG Belt Bucket Elevator(with Zh bucket)Technical Parameters TableMain Technical Parameters THGTHGTHGTHGTHGTHGTHGTHGTHGTHGTHG160200250315400500630800100012501600Capacity Q(m³/h)21 33 45 74 120 160 250 345 520 810 1110 Bucket  Volume /L1.9 2.9 4.6 7.4 12 19 29 47 74 117 184 Pitch of Buckets /mm270 270 336 378 420 480 546 630 756 756 882 weight of traction chain & bucket  per meter(kg/m) 31 31.8533.443.25 60.9 79.6 88.66 107 150 187.6 233   Running Speed     v/(m/s) 0.930.93 1.04 1.04 1.17 1.17 1.32 1.31 1.47 1.47 1.47 Lifting height max/m 75757575 75 75 75 70 70 55 55       1. Filling factor ψ=1;      2. Bucket volume=Volume of full water                                               3. Maximum lifting height = axis distance of bucket elevator Please Feel free to give your inquiry in the form below.     Packaging & Shipping1.We can deliver bucket elevator timely .2.Standard sea shipping packaging.Get a price at once!/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
