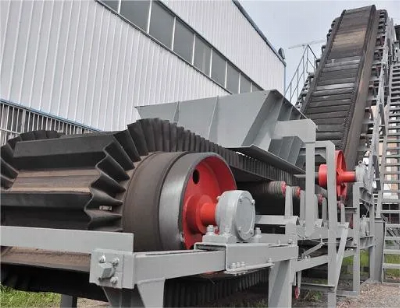

Flange Belt, Large Angle Conveyor,

Product Description   1. This series of products is a continuous conveying equipment for bulk materials for general use, but it uses a conveyor belt with wavy guard and transverse partition. Therefore, it is especially suitable for large Angle conveying.2. This series of products can be widely used in metallurgy, electric power, coal, building materials, chemical, light industry, grain, port, shipping and other industries, in the working environment of -25ºC - +40ºC range, conveying bulk proportion of 0.5-2.5T/m³ of all kinds of bulk materials.3.For the conveying of materials with special requirements, such as: high temperature, acid, alkaline, oil substances or organic solvents and other components of the material, need to use a special side conveyor belt.4. The transport Angle of any Angle in the range of 0º to 90º, the maximum conveying material particle size is 400mm.Technical parameterBandwidth--B  Rib height--H  Tape speed--V  Dip Angle--β Maximum throughput--Q  Power--N In order to obtain better receiving and discharging conditions, the machine is recommended to adopt the "S" layout type, that is, there is an upper horizontal section, a lower horizontal section and a discharge section. The material is received in the lower horizontal section and discharged in the upper horizontal section. The upper horizontal section and the inclined section are connected by a convex arc frame. The concave arc frame is connected between the launching section and the inclined section in order to realize the smooth transition of the conveyor belt with wavy rib.See Figure 1-2 "S" layout with the equipment conveying Angle
