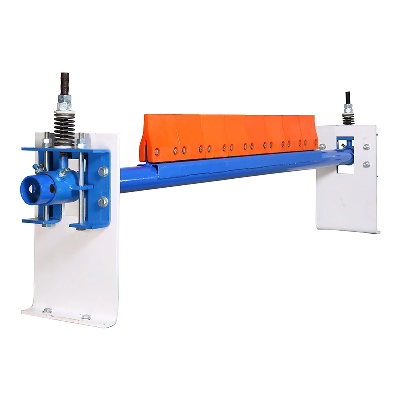

Heavy Duty Secondary Polyurethane Belt Cleaner for Industrial Conveyor Machinery

  Heavy-duty Polyurethane Secondary Cleaner PRODUCT INTRODUCTION SECONDARY CLEANER is designed for conveyor belts that operate continuously under harsh conditions. As a secondary cleaner in the cleaning system, it can clean up the small particles that are missed from the primary cleaner, especially those that adhere to it. This series of cleaners can bring continuous and outstanding cleaning effects. The spring buffer device can push the cleaning scraper onto the surface of the conveyor belt and maintain continuous contact.PRODUCT SPECIFICATIONS Technical Specifications & Parameters of the Secondary CleanerModelBelt Width ( B )mmScraper Width ( L1 )mmShaft Length ( L0 )mmRecommended Height ( H )mmJQE656507501250850JQE8080090014501050JQE1001000105016501250JQE1201200120019001500JQE1401400150021001700JQE1601600165023001900JQE1801800180025002100JQE2002000210027002300JQE2202200225029002500JQE2402400240031002700PRODUCT FEATURES1.  The scraper adopts a UHMW-PE material (GB/T33092) specially designed and developed for conveyor belt cleaners. The polyurethane itself has a certain degree of elasticity and excellent wear resistance, ensuring a longer service life of the scraper.2.  Equipped with a spring automatic compression device, it is regularly compressed to achieve long-term maintenance free. The tensioning device adopts an anti-tipping design.3.  The cleaning scraper is a solid segmented scraper with modular design to reduce maintenance costs.4.  An integral scraper can also be used, making it easy to replace the cleaning scraper. Simply remove one side pin and insert a new scraper. The entire process only takes a few minutes.5. The perfect match between the cleaning scraper and the conveyor belt. The width of the scraper is designed based on the material width, and the difference in wear between the two ends is minimized. It has more efficient cleaning capabilities, with long service life and excellent cleaning effect.6.  Easy installation. It can be easily installed on the discharge hopper or top open conveyor.7.  Easy to use and maintain, with an automatic compression spring device for quick visual inspection. By adjusting the nut, the scraper pressure can be adjusted to the best, making it convenient and repeatable to operate.VARIOUS TYPES OF CONVEYOR BELT CLEANERS SUPPLY  APPLICATION INDUSTRIESOUR CONVEYORS EPC/BOT CONTRACTING CAPABILITY VARIOUS CONVEYOR SPARE PARTS SUPPLY COAL MINING MACHINERY AND SPARE PARTS SUPPLYAERIAL VIEW OF OUR FACTORY   INTELLIGENT PRODUCTION & TESTING CERTIFICATES & HORNORSBRANCHES & OFFICESTEAM BUILDINGLONG-TERM STRATEGIC COOPEATORSMAIN CUSTOMERSCUSTOMERS VISITSDOMESTIC & OVERSEAS EXHIBITIONSSINGING CEREMONYGLOBAL BUSINESS NETWORK     /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
